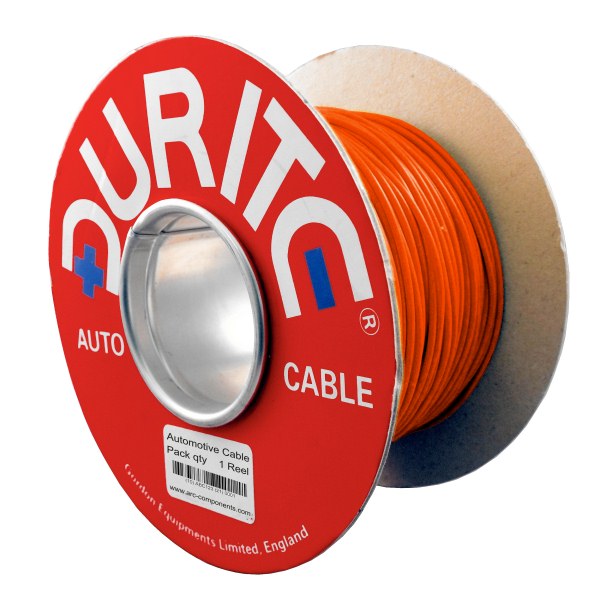

0-933-10 100m x 2.00mm² Orange 25A Auto Single-core Cable

0-933-10 100m x 2.00mm² Orange 25A Auto Single-core Cable
0-933-10 100m x 2.00mm² Orange 25A Auto Single-core Cable
£53.08 Excl. VAT
RRP £62.18 Excl. VAT
(£63.70 Inc. VAT)
Initial Savings
£9.10
Earn 53 Loyalty Points

Available
Model
0-933-10
Bar Code
5056119132052
Part Number
0-933-10
Brand
Durite
Colour
Orange
Voltage
12V/24V/36V/48V DC
Amperage
25A
Material
Copper/PVC
 Intrastat HS Code  8544499390
Ship Weight
2.28 kg


 Durite Orange 25 Amps 2mm² single-core thin wall PVC sheathed auto electric cable.

  • 2.00mm² (14AWG) Orange.
  • 25A single-core automotive cable and vehicle wiring.
  • 28 copper strands at 0.30mm.
  • Outside diameter: 2.8mm.
  • Manufactured to ISO 06722/4.
  • Roll length: 100m.

About the 0-933-10 2.00mm² Orange Thin Wall Electric Cable

 Arc Components Limited presents the 0-933-10, Durite's low to medium-duty 25A Orange automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.8mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 25 Amps.

 Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
25 Amps
Insulation Colour
Orange
Wire
28/0.30mm copper
Cross-section
2.0mm� (14 AWG)
Voltage
60 Volts DC Max.
Resistance
9.4mΩ/m at 20℃
Insulation
Hard grade PVC to BS6746 Type 5.
Overall Diameter
2.8mm
Length of Cable
100 Metres
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Approvals
ISO6722/4
Weight
2.28Kg
