0-933-06 100m x 2.00mm˛ Purple 25A Auto Single-core Cable
Weight: 2.28 kg
Bar Code: 5056119132014
Part Number: 0-933-06
Voltage 12V/24V/36V/48V DC
Durite Purple 25 Amps 2mm² single-core thin wall PVC sheathed auto electric cable.
- 2.00mm² (14AWG) Purple.
- 25A single-core automotive cable and vehicle wiring.
- 28 copper strands at 0.30mm.

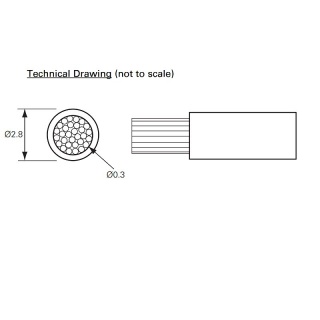

- Outside diameter: 2.8mm.
- Manufactured to ISO 06722/4.
- Roll length: 100m.
About the 0-933-06 2.00mm² Purple Thin Wall Electric Cable
Arc Components Limited presents the 0-933-06, Durite's low to medium-duty 25A Purple automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.8mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 25 Amps.
Used as a conductor on auto electrical equipment and wiring looms.
|Type ||Single-core thin wall cable |
|Current Rating ||25 Amps |
|Insulation Colour ||Purple |
|Wire ||28/0.30mm copper |
|Cross-section ||2.00mm² (14 AWG) |
|Voltage ||60 Volts DC Max. |
|Resistance ||9.4mΩ/m at 20℃ |
|Insulation ||Hard grade PVC to BS6746 Type 5. |
|Overall Diameter ||2.8mm |
|Temperature ||Minus 40 to +105℃ |
|Length of Cable ||100 Metres |
|Approvals ||ISO6722/4 |
|Weight ||2.28Kg |
