0-930-09 100m x 1.50mm² Grey 21A Single-core Thin Wall Auto Electric Cable

0-930-09 100m x 1.50mm² Grey 21A Single-core Thin Wall Auto Electric Cable
0-930-09 100m x 1.50mm² Grey 21A Single-core Thin Wall Auto Electric Cable
£39.61 Excl. VAT
RRP £46.40 Excl. VAT
Initial Savings
£6.79
(£47.53 Inc. VAT)
Earn 39 Loyalty Points

Available
Model
0-930-09
Bar Code
5056119131345
Part Number
0-930-09
Brand
Durite
Colour
Grey
Voltage
12V/24V/36V/48V DC
Amperage
21A
Material
Copper/PVC
Weight
1.65 kg


Durite Grey 21 Amps 1.5mm² single-core thin wall PVC sheathed auto electric cable.
  • 1.50mm² (15AWG) Grey.
  • 21A single-core automotive cable and vehicle wiring.
  • 21 copper strands at 0.30mm.
  • Outside diameter: 2.4mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length: 100m.

About the 0-930-09 1.50mm² Grey Thin Wall Electric Cable

 Arc Components Limited presents the 0-930-09, Durite's light-duty 21A Grey automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/light load requirement.

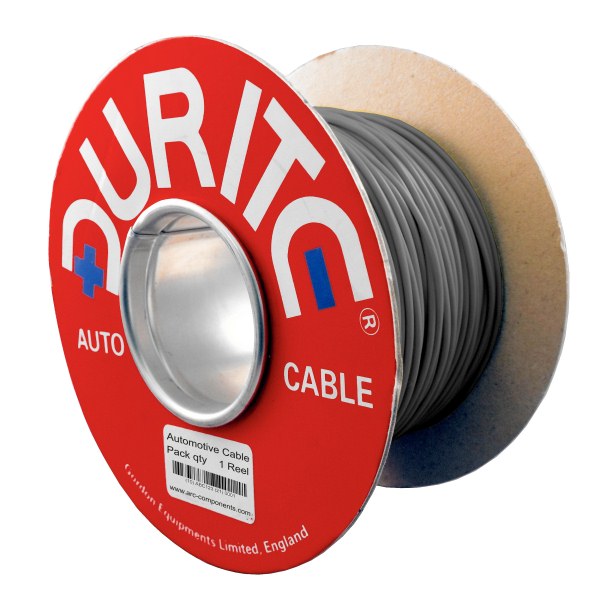

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.5mm² (15 AWG) and features 21 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21 Amps.

 Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
21 Amps
Insulation Colour
Grey
Wire
21/0.30mm copper
Cross-section
1.5mm² (15 AWG)
Voltage
60 Volts DC Max.
Resistance
12.7mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
2.4mm
Length of Cable
100 Metres
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Approvals
ISO6722-1:2011
Weight
1.65Kg
