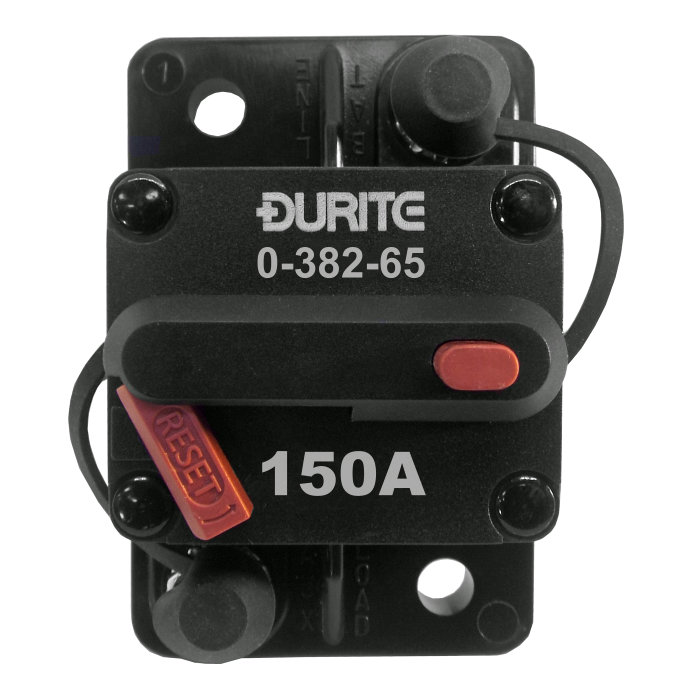

0-382-65 Durite 12V-24V DC 150A Manual Reset Circuit Breaker

£29.12  Excl. VAT
  (£34.94 Inc. VAT)
RRP:  £33.47  Excl. VAT
Savings before Cart:  £4.35
Earn 29 Loyalty Points
Available


Weight:  100 g


Model:  0-382-65
Bar Code:  5056119151213
Part Number:  0-382-65
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  150A
Material  Thermoplastic/Brass/Copper/Steel


 Durite 150 Amps circuit breakers for 12V-24Vdc auxiliary and accessory circuits found on; cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

  • 150A manual reset protection for ignition circuits.
  • Thermoplastic housing.
  • Surface-mounted version.
  • It is rated for a 12 Volts and 24 Volts DC application.
  • Quarter-inch terminal bolts.
  • Pack Quantity: 1 piece.

Related Products

  • 0-383-99 Steel 90° angled mounting bracket.

Dimensions

  • Height: 74.5mm
  • Width: 49mm
  • Depth (including button): 46mm

Specifications

Type Single-pole thermal device
Amps 150A
Voltage 12Vdc to 24Vdc
Colour Black
Body Material Polybutylene Terephthalate (PBT 4830)
Operating Temperature -32°C to 82°C (-25°F to 180°F)
Storage Temperature -34°C to 149°C (-30°F to 300°F)
Weight 100g



Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
