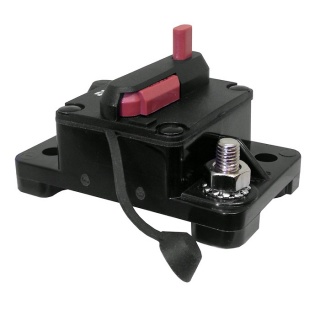

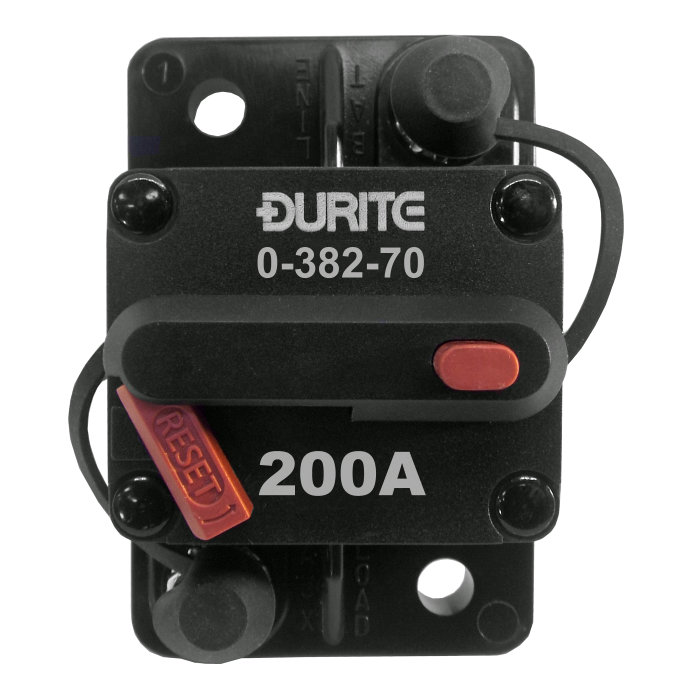

0-382-70 Durite 12V-24V DC 200A Manual Reset Circuit Breaker

£39.09  Excl. VAT
  (£46.91 Inc. VAT)
RRP:  £43.92  Excl. VAT
Initial Savings:  £4.83
Earn 39 Loyalty Points
Available


Weight:  100 g





Model:  0-382-70
Bar Code:  5056119151220
Part Number:  0-382-70
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  200A
Material:  Thermoplastic/Brass/Copper/Steel


 Durite 200 Amps circuit breakers for 12V-24Vdc auxiliary and accessory circuits found on cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

  • 200A manual reset protection for ignition circuits.
  • Thermoplastic housing.
  • Surface-mounted version.
  • It is rated for 12 Volts and 24 Volts DC applications.
  • Quarter-inch terminal bolts.
  • Pack Quantity: 1 piece.

Related Products

  • 0-383-99 Steel 90° angled mounting bracket.

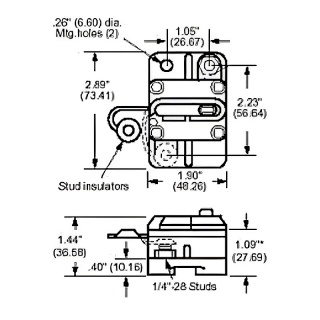

Dimensions

  • Height: 74.5mm
  • Width: 49mm
  • Depth (including button): 46mm

Specifications

Type Single-pole thermal device
Amps 150A
Voltage 12Vdc to 24Vdc
Colour Black
Body Material Polybutylene Terephthalate (PBT 4830)
Operating Temperature -32°C to 82°C (-25°F to 180°F)
Storage Temperature -34°C to 149°C (-30°F to 300°F)
Weight 100g







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-364-50 Splashproof On-Off Single-pole Switch Nylon Toggle Lever 10A
0-364-50 Splashproof On-Off Single-pole Switch Nylon Toggle Lever 10A

On-Off single-pole switch with PVC shroud over nylon toggle lever, 6.3mm terminals. It requires a 13mm panel hole and is rated 10 Amps at 12Vdc.


Available
 Reference: 0-364-50 £7.08   £6.30
0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A
0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A

Standard aftermarket Green MEGA type fuse for heavy-duty application. Fuse rating of 125 Amps for continuous use.


Available
 Reference: 0-366-12 £3.80   £3.38
0-366-17 Durite Aftermarket White MEGA Type Fuse - 175A
0-366-17 Durite Aftermarket White MEGA Type Fuse - 175A

Standard aftermarket White MEGA type fuse for heavy-duty application, fuse rating 175 Amps for continuous use.


Available
 Reference: 0-366-17 £3.80   £3.38


Related Products

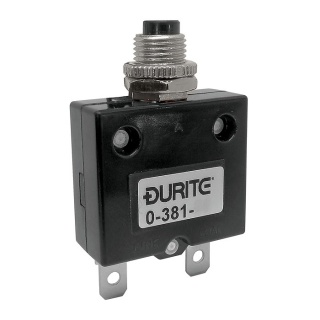

0-381-70 Durite 12V-24V Panel Mount Circuit breaker 20A
