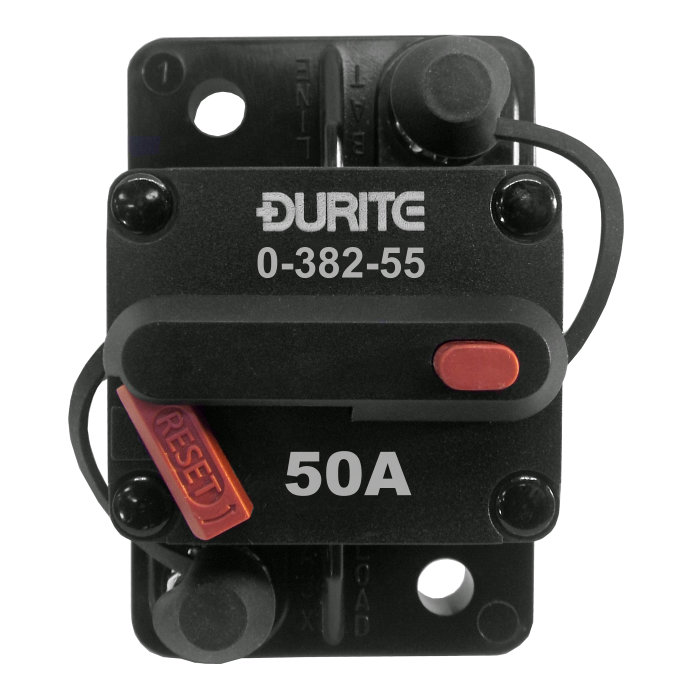

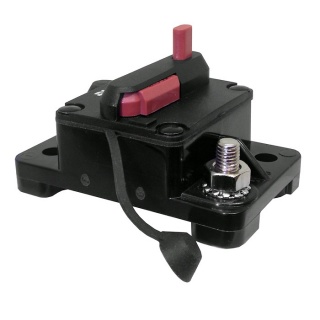

0-382-55 Durite 12V-24V DC 50A Manual Reset Circuit Breaker

£31.27  Excl. VAT
  (£37.52 Inc. VAT)
RRP:  £35.14  Excl. VAT
Initial Savings:  £3.87
Earn 31 Loyalty Points
Available


Weight:  100 g





Model:  0-382-55
Bar Code:  5056119151176
Part Number:  0-382-55
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  50A
Material:  Thermoplastic/Brass/Copper/Steel


 Durite 50 Amps circuit breakers for 12V-24Vdc auxiliary and accessory circuits found on cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

  • 50 Amps manual reset protection for ignition circuits.
  • Thermoplastic housing.
  • Surface-mounted version.
  • It is rated for a 12 Volts and 24 Volts DC application.
  • Quarter-inch terminal bolts
  • Pack Quantity: 1 piece.

Related Products

  • 0-383-99 Steel 90° angled mounting bracket.

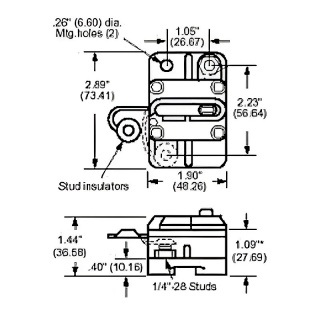

Dimensions

  • Height: 74.5mm
  • Width: 49mm
  • Depth (including button): 46mm

Specifications

Type Single-pole thermal device
Amps 50A
Voltage 12Vdc to 24Vdc
Colour Black
Body Material Polybutylene Terephthalate (PBT 4830)
Operating Temperature -32°C to 82°C (-25°F to 180°F)
Storage Temperature -34°C to 149°C (-30°F to 300°F)
Weight 100g







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-382-60 Durite 12V-24V DC 100A Manual Reset Circuit Breaker
0-382-60 Durite 12V-24V DC 100A Manual Reset Circuit Breaker

Durite 12V-24Vdc 100 Amps thermal plastic circuit breakers. Surface mount slide-to-reset single-pole circuit breaker.


Available
 Reference: 0-382-60 £35.14   £31.27
0-382-70 Durite 12V-24V DC 200A Manual Reset Circuit Breaker
0-382-70 Durite 12V-24V DC 200A Manual Reset Circuit Breaker

Durite 12V-24Vdc 200 Amps thermal plastic circuit breakers. Surface mount slide-to-reset single-pole circuit breaker.


Available
 Reference: 0-382-70 £43.92   £39.09


Related Products

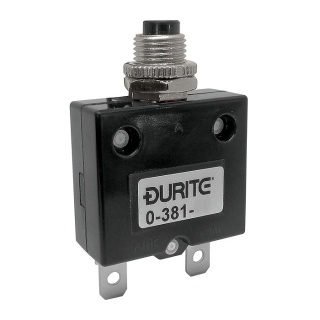

0-381-55 Durite 12V-24V Panel Mount Circuit breaker 5A
