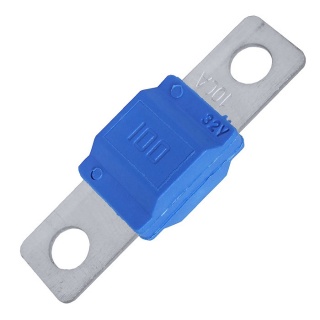

0-368-20 Durite Aftermarket Blue MIDI Type Fuse - 100A

£1.44  Excl. VAT
  (£1.73 Inc. VAT)
RRP:  £1.62  Excl. VAT
Initial Savings:  £0.18
Earn 1 Loyalty Points
Available


Weight:  10 g





Model:  0-368-20
Bar Code:  5056119147698
Part Number:  0-368-20
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V DC
Amperage:  100A
Material:  Zinc Alloy/Thermoplastic


 Durite brand 100 Amps blue Midi type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.

  • Colour coded: Blue.
  • 100A continuous use.
  • 200A blow rating.
  • Voltage rating: 32Vdc.
  • Zinc alloy terminal.
  • Thermoplastic housing.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.

Fits Fuse Holder Part Numbers

  • 0-378-00 Strip link fuse holder
  • 0-378-85 MIDI fuse holder

Dimensions

  • Length: 41mm.
  • Body width: 12mm.
  • Blade width: 10mm.
  • 5.50mm (M5 bolt) hole centers: 30mm.

About The 100 Amps Midi Style Aftermarket Fuses

 The 100A blue colour coded bolt down Midi style fuse from the Durite aftermarket range of automotive fuses is ideal for space-saving fuse solutions. Designed for medium to heavier duty battery, alternator and auto electric switchgear protection on vehicles and industrial equipment. The 100A continuous rating gives high current circuit protection on equipment circuits that are passing current (always on), the 200A blow rating is for intermittent circuits where the zinc alloy fuse element requires to heat up from cold before blowing.

 The Midi style fuse range is ideal for medium to heavy-duty equipment circuits and medium to heavy-duty gauge electric cables.

Specifications

Type Midi style fuse
Voltage To 32 Volts DC
Colour code Blue
Current rating 100 Amps continuous
Blow rating (from cold) 200 Amps intermittent
Body Material Polybutylene Terephthalate (PBT)
Terminal Zinc
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Mounting Torque M5 4.5 Nm +/- 1Nm
Weight 10g
