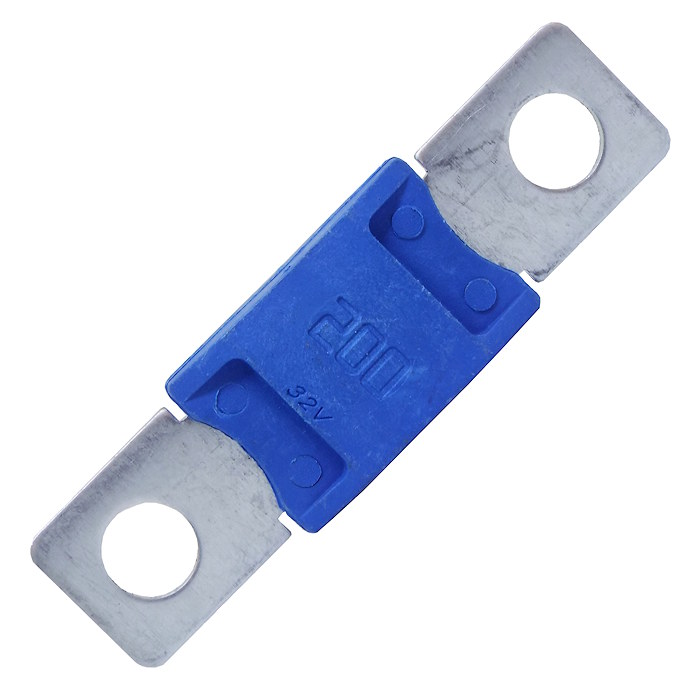

0-366-20 Durite Aftermarket Blue MEGA Type Fuse - 200A

£3.38  Excl. VAT
  (£4.06 Inc. VAT)
RRP:  £3.80  Excl. VAT
Initial Savings:  £0.42
Earn 3 Loyalty Points
Available


Weight:  20 g





Model:  0-366-20
Bar Code:  5056119148350
Part Number:  0-366-20
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V DC
Amperage:  200A
Material:  Zinc Alloy/Thermoplastic


 Durite standard aftermarket 200 Amps Blue MEGA type fuse, used for circuit protection on heavy gauge automotive cables and vehicle wiring.

  • Colour Coded: Blue.
  • Continuous Rating: 200A.
  • Blow Rating: 400A.
  • Voltage Rating: 32Vdc.
  • Mounting Torque: 12-18Nm M8.

Dimensions

  • Length: 67mm.
  • Body width: 18.5mm.
  • M8 hole centres: 50.8mm.

Associated Parts

  • 0-376-85 MEGA fuse holder.
  • 0-376-86 compact MEGA fuse holder.

About the 200 Amps MEGA Type Fuses

 Durite's aftermarket range of 200A Blue bolt-down MEGA type fuses. The heavy-duty link fuses are ideal for heavy gauge automotive cable and wiring, especially when used for battery and alternator protection on vehicles and industrial material handling equipment.

 The 200A continuous rating gives high current circuit protection on auto electric equipment close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 400A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MEGA type fuse
Voltage To 32 Volts DC
Colour Code Blue
Current Rating 200 Amps - Continuous
Blow Rating (from cold) 400 Amps - Intermittent
Body Material Plastic
Termination Zinc Alloy
Weight 12.5g




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

MEGA Fuse Holder for the MEGA Range of Fuses | Re: 0-376-85
MEGA Fuse Holder for the MEGA Range of Fuses | Re: 0-376-85

Durite Black MEGA type fuse holder. Side stackable carrier for the Littelfuse Mega range of fuses with M8 studs.


Available
 Reference: 0-376-85 From:  £9.18
0-002-85 Pack of 25 P-Clips Zinc-plated Rubber-lined for Cable up to 16mm
0-002-85 Pack of 25 P-Clips Zinc-plated Rubber-lined for Cable up to 16mm

Durite 16mm diameter steel cable P-Clips with a TPE rubber liner. The cable and piping clamps are zinc-plated and rubber lined with fixing holes of 6.6mm.


Available
 Reference: 0-002-85 £25.22   £22.45

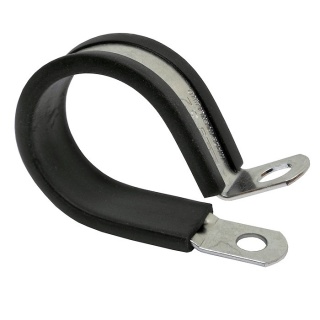

0-002-88 Pack of 25 P-Clips Zinc-plated Rubber-lined for Cable up to 32mm
0-002-88 Pack of 25 P-Clips Zinc-plated Rubber-lined for Cable up to 32mm

Durite 32mm diameter steel cable P-Clips with a TPE rubber liner. The cable and piping clamps are zinc-plated and rubber lined with fixing holes of 6.6mm.


Available
 Reference: 0-002-88 £36.66   £32.63


Related Products

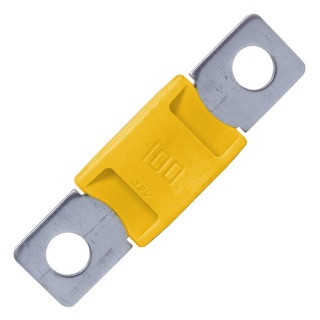

0-366-10 Durite Aftermarket Yellow MEGA Type Fuse - 100A
0-366-10 Durite Aftermarket Yellow MEGA Type Fuse - 100A

Standard aftermarket Yellow MEGA type fuse for heavy-duty application. Fuse rating of 100 Amps for continuous use.


Available
 Reference: 0-366-10 £3.80   £3.38

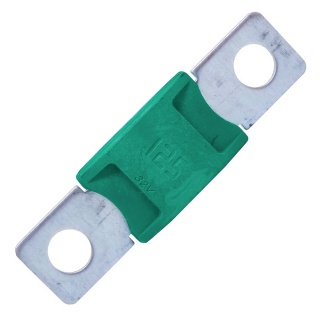

0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A
0-366-12 Durite Aftermarket Green MEGA Type Fuse - 125A

Standard aftermarket Green MEGA type fuse for heavy-duty application. Fuse rating of 125 Amps for continuous use.


Available
 Reference: 0-366-12 £3.80   £3.38

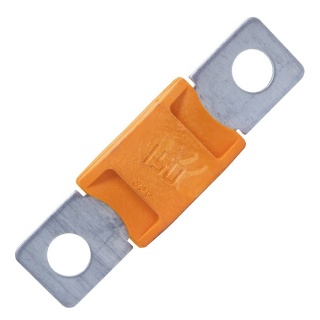

0-366-15 Durite Aftermarket Orange MEGA Type Fuse - 150A
0-366-15 Durite Aftermarket Orange MEGA Type Fuse - 150A

Standard aftermarket Orange MEGA type fuse for heavy-duty application. Fuse rating of 150 Amps for continuous use.


Available
 Reference: 0-366-15 £3.80   £3.38

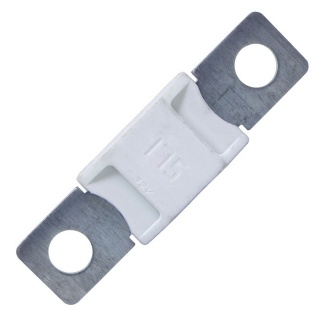

0-366-17 Durite Aftermarket White MEGA Type Fuse - 175A
0-366-17 Durite Aftermarket White MEGA Type Fuse - 175A

Standard aftermarket White MEGA type fuse for heavy-duty application, fuse rating 175 Amps for continuous use.


Available
 Reference: 0-366-17 £3.80   £3.38

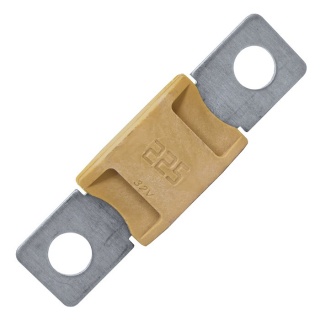

0-366-22 Durite Aftermarket Tan MEGA Type Fuse - 225A
0-366-22 Durite Aftermarket Tan MEGA Type Fuse - 225A

Standard aftermarket Tan MEGA type fuse for heavy-duty application. Fuse rating of 225 Amps for continuous use.


Available
 Reference: 0-366-22 £3.80   £3.38

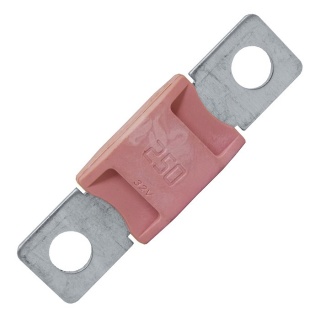

0-366-25 Durite Aftermarket Pink MEGA Type Fuse - 250A
