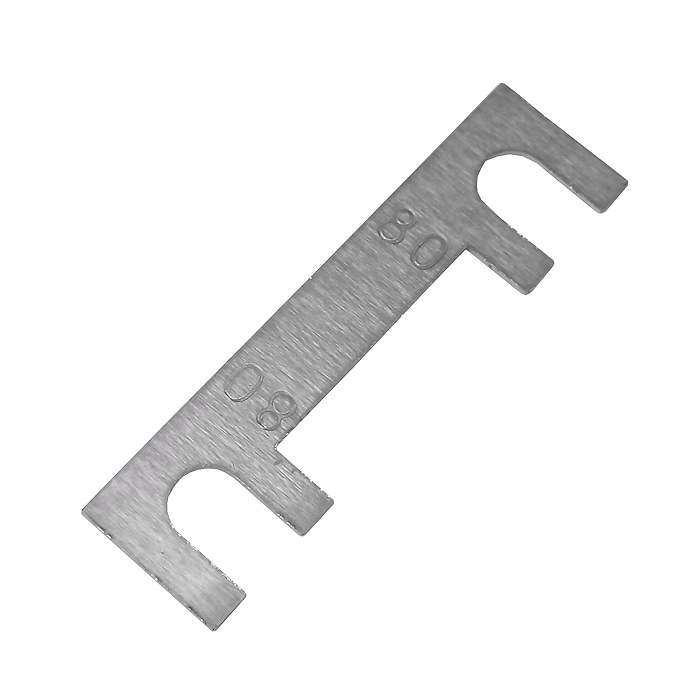

0-378-80 Pack of 10 Strip Link Fuses 80A

£2.03  Excl. VAT
  (£2.44 Inc. VAT)
RRP:  £2.28  Excl. VAT
Initial Savings:  £0.25
Earn 2 Loyalty Points
Available


Weight:  10 g


Model:  0-378-80
Bar Code:  5056119110869
Part Number:  0-378-80
Brand:  Durite
Colour  Tin
Voltage  12V/24V DC
Amperage  80A
Material  Copper/Tin


 Durite 80 Amps strip link fuses for surge protection on vehicle components and automotive cables and wiring.

  • Classic hook ended style strip link fuse.
  • Continuous Rating: 80A.
  • Blow Rating: 160A.
  • Voltage: 32 Volts DC Maximum.
  • Manufactured to: DIN 72581-2.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Associated products

  • 0-378-00 Strip Link Fuse Holder
  • 0-378-85 MIDI Fuse Holder

Approximate Dimensions

  • Total Length: 41.0mm
  • Total Width: 11.0mm
  • For M5 post centre: 32mm.

About The 80A Strip Link Fuse

 The Durite classic style small strip link fuses are historically used for surge protection, usually found mounted on vehicle fuse panels and when used inline on automotive cables and vehicle wiring.

 The ratings for 80A continuous use is based on a circuit constant load being always-on, the 160A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.

Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

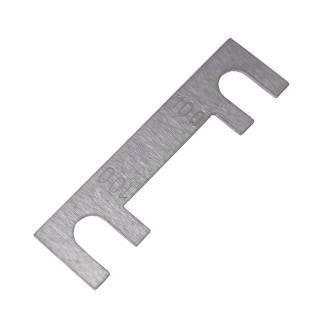

0-378-10 Pack of 10 Strip Link Fuses 100A
