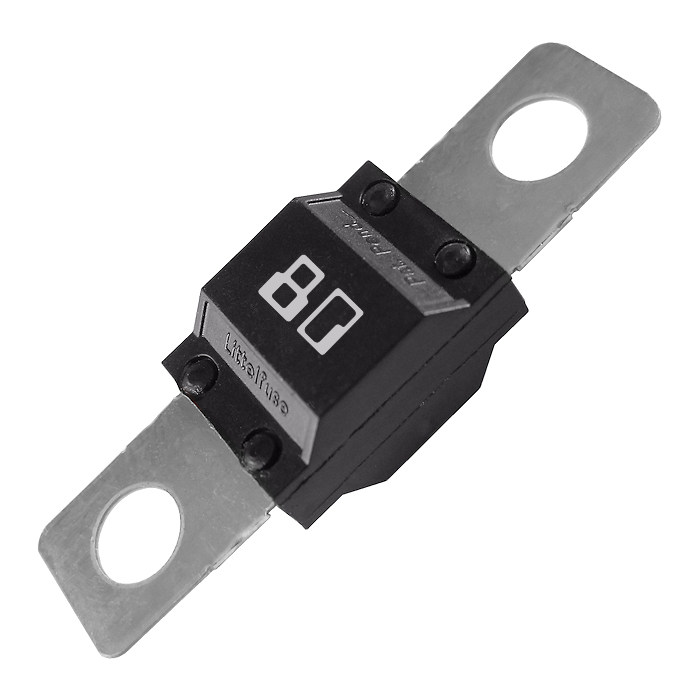

Durite brand and Littelfuse manufactured industry-standard and OEM quality 80 Amps white MIDI type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.
- Colour coded: White.
- 80A continuous use.
- 160A blow rating.
- Interrupting rating: 1000A at 32Vdc.
- Voltage rating: 32Vdc.
- Operating temperature range: -40 to 125℃.
- Tin plated copper terminal.
- Thermoplastic housing.
- Mounting torque M5: 4.5Nm plus or minus 1Nm.
- Complies with ISO 8820-5, UL 248 special purpose fuses.
Fits Fuse Holder Part Numbers
- 0-378-00 Strip link fuse holder
- 0-378-85 MIDI fuse holder

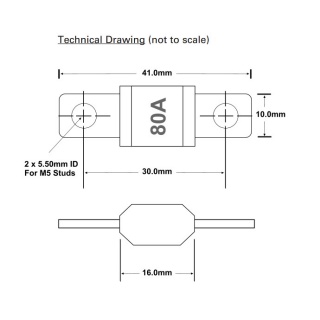

Dimensions
- Length: 41mm.
- Body width: 12mm.
- Blade width: 10mm.
- 5.50mm (M5 bolt) hole centers: 30mm.
About The 80 Amps MIDI Type Fuses
80A white colour coded bolt down MIDI type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.
The 80A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including medium gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 160A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.
Specifications
| Type | MIDI type fuse |
| Voltage | To 32 Volts DC |
| Interrupting Rating | 1000A at 32Vdc |
| Colour code | White |
| Current rating | 80 Amps continuous |
| Blow rating (from cold) | 160 Amps intermittent |
| Body Material | PA66-GF25 (U.L. 94 Flammability rating – V0) |
| Terminal | Tin-plated Copper |
| Operating temperature | -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃) |
| Mounting Torque M5 | 4.5 Nm +/- 1Nm |
| Complies with | Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU |
| Refers to | ISO 8820-5:2003 |
| Weight | 10g |
