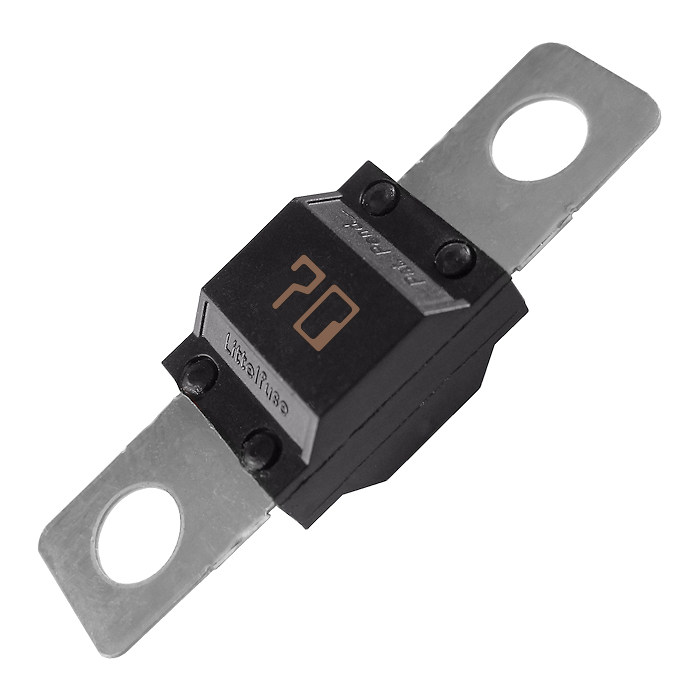

0-378-17 Brown MIDI Link Fuse - 70A

£1.96  Excl. VAT
  (£2.35 Inc. VAT)
RRP:  £2.20  Excl. VAT
Initial Savings:  £0.24
Earn 1 Loyalty Points
Available


Weight:  10 g





Model:  0-378-17
Bar Code:  5056119110760
Part Number:  0-378-17
Brand:  Durite
Colour  Brown
Voltage  12V/24V DC
Amperage  70A
Material  Copper/Tin/Thermoplastic


 Durite brand and Littelfuse manufactured industry-standard and OEM quality 70 Amps brown MIDI type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.

  • Colour coded: Brown.
  • 70A continuous use.
  • 140A blow rating.
  • Interrupting rating: 1000A at 32Vdc.
  • Voltage rating: 32Vdc.
  • Operating temperature range: -40 to 125℃.
  • Tin plated copper terminal.
  • Thermoplastic housing.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.
  • Complies with ISO 8820-5, UL 248 special purpose fuses.

Fits Fuse Holder Part Numbers

  • 0-378-00 Strip link fuse holder
  • 0-378-85 MIDI fuse holder

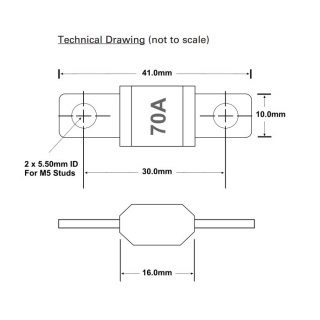

Dimensions

  • Length: 41mm.
  • Body width: 12mm.
  • Blade width: 10mm.
  • 5.50mm (M5 bolt) hole centers: 30mm.

About The 70 Amps MIDI Type Fuses

 70A brown colour coded bolt down MIDI type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.

 The 70A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including medium gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 140A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MIDI type fuse
Voltage To 32 Volts DC
Interrupting Rating 1000A at 32Vdc
Colour code Brown
Current rating 70 Amps continuous
Blow rating (from cold) 140 Amps intermittent
Body Material PA66-GF25 (U.L. 94 Flammability rating – V0)
Terminal Tin-plated Copper
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Mounting Torque M5 4.5 Nm +/- 1Nm
Complies with Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU
Refers to ISO 8820-5:2003
Weight 10g
