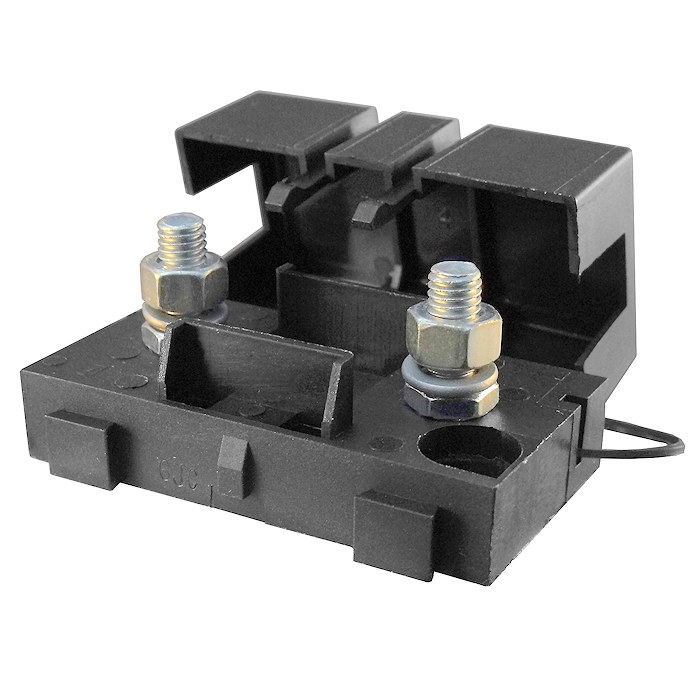

0-378-85 Fuse Holder for the Midi Range of Fuses

£8.53  Excl. VAT
  (£10.24 Inc. VAT)
RRP:  £9.80  Excl. VAT
Initial Savings:  £1.27
Earn 8 Loyalty Points
Available


Weight:  30 g


Model:  0-378-85
Bar Code:  5056119110876
Part Number:  0-378-85
Brand:  Durite
Colour  Black
Voltage  32V DC Max.
Amperage  200A
Material  Nylon PA66/Steel


 Durite fuse holder for the auto electrical MIDI range of fuses.

  • M5 studs and nuts.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.
  • Can be panel or bulkhead fixed.
  • Colour: black.
  • Maximum Voltage: 32Vdc.
  • Maximum Amperage: 200A Continuous.
  • Pack Quantity: 1 piece.

About The MIDI Fuse Holder

 The 498 series MIDI fuse carrier from the Littelfuse range of automotive fuses, ideal space-saving fuse solution for medium to heavier duty battery, alternator and auto electric switchgear surge protection on vehicles and industrial equipment.

 The MIDI fuse range is ideal for medium to heavy-duty equipment circuits and medium to heavy-duty gauge electric cables. The fuse holder is suitable for the MIDI fuse range up to 200 Amps continuous use.
