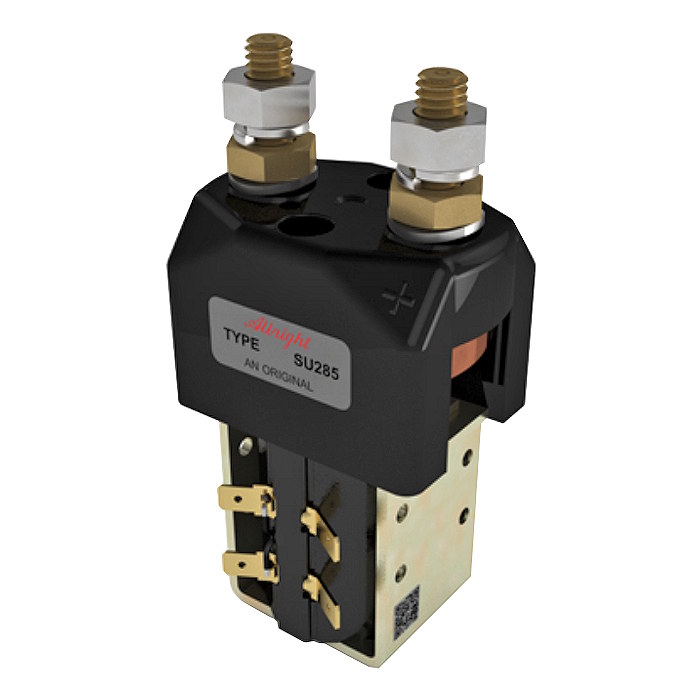

SU285-10 Albright Single Acting Normally Closed Solenoid 12V Intermittent

£59.46  Excl. VAT
  (£71.35 Inc. VAT)


Earn 59 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  1.28kg


Model:  SU285-10
Part Number:  SU285-10
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright SU285 single acting 'Normally Closed' 12V intermittently rated contactor.

  • The SU285 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double breaking contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • There is no mounting bracket supplied with this version.

Associated products

  • 2159-47 Top hat mounting bracket
  • 2155-165 'L' shaped mounting bracket
  • 2065-167A Saucepan paired bracket kit

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.

About the Normally Closed Intermittent (INT.) SU285 Solenoids

 Normally closed intermittent contactors by design are for a ‘Made’ line function and break only when the coil is energised, they break faster than continuous rated solenoids.

Specifications

Device TypeSU280 SPST NC
Voltage12V D.C.
Coil TypeIntermittent
Amps250 amp
Coil Resistance (Ohms)5
Pull-In Voltage (V)7.0 Maximum
Drop Out Voltage (V)3.0 Maximum
Coil Power Dissipation (W)28.80
Typical Voltage Drop Per Pole
across New Contacts at 250A
40mV
Operating Ambient Temperature-40 to +60℃
Mechanical M.T.B.F.Greater than 3000000
Weight755g
ApplicationInterruptedUninterrupted
Thermal Current Rating250A350A
Intermittent Current Rating:
30% Duty455A640A
40% Duty395A555A
50% Duty355A495A
60% Duty325A450A
70% Duty300A420A
