SU285-1 Albright Single-acting Normally Closed Solenoid 12V Continuous

SU285-1 Albright Single-acting Normally Closed Solenoid 12V Continuous
SU285-1 Albright Single-acting Normally Closed Solenoid 12V Continuous
SU285-1 Albright Single-acting Normally Closed Solenoid 12V Continuous
£79.22 Excl. VAT
(£95.06 Inc. VAT)
Earn 79 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks
Model
SU285-1
Bar Code
DNA
Part Number
SU285-1
Brand
Albright
Colour
Black
Voltage
12V DC
Material
Copper/Silver/Bakelite
Coil type
Continuous
Weight
1.28 kg

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

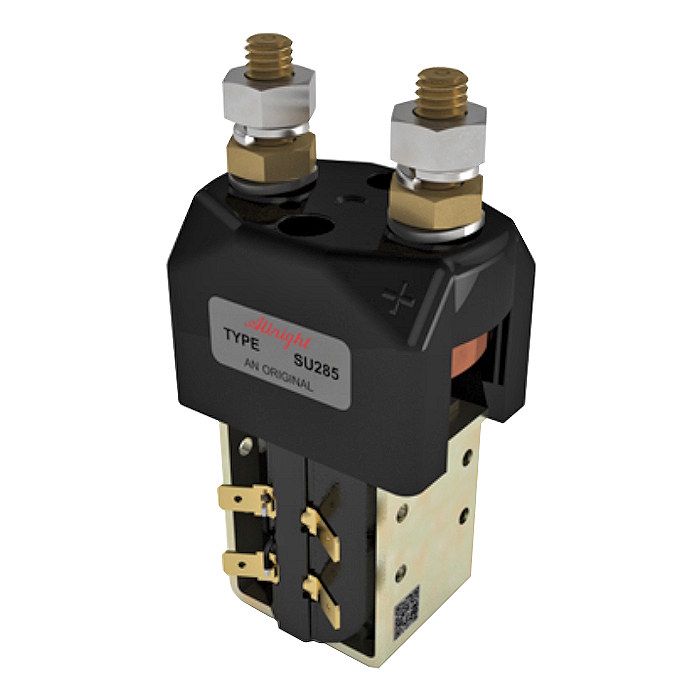

Albright SU285 single-acting 'Normally Closed' 12V continuously rated contactor.

  • The SU285 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • There is no mounting bracket supplied with this version.

Associated products

  • 2159-47 Top hat mounting bracket
  • 2155-165 'L' shaped mounting bracket
  • 2065-167A Saucepan paired bracket kit

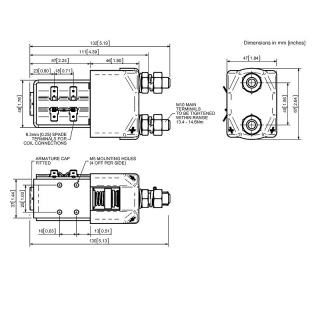

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.

About The Normally Closed Continuous (CO.) SU285 Solenoids

 Normally Closed continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised, they break slower than intermittent solenoids and are recommended for prolonged contact periods.

Specifications

Device Type SU280 SPST NC
Voltage 12V D.C.
Coil Type Continuous
Amps 250 Amps
Coil Resistance (Ohms) 13
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 11.08
Typical Voltage Drop Per Pole
across New Contacts at 250A		 40mV
Operating Ambient Temperature -40 to +60℃
Mechanical M.T.B.F. Greater than 3000000
Weight 755g
Application Interrupted Uninterrupted
Thermal Current Rating 250A 350A
Intermittent Current Rating:
30% Duty 455A 640A
40% Duty 395A 555A
50% Duty 355A 495A
60% Duty 325A 450A
70% Duty 300A 420A
