SU285-2P Albright Single-acting Normally Closed Solenoid 30V Continuous
Pre-order
Despatch: 9 to 12 Weeks |
Weight: 1.28 kg
Model: SU285-2P
Bar Code: DNA
Part Number: SU285-2P
Brand: Albright
Colour Black
Voltage 30V DC
Material Copper/Silver/Bakelite
Coil type Continuous
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

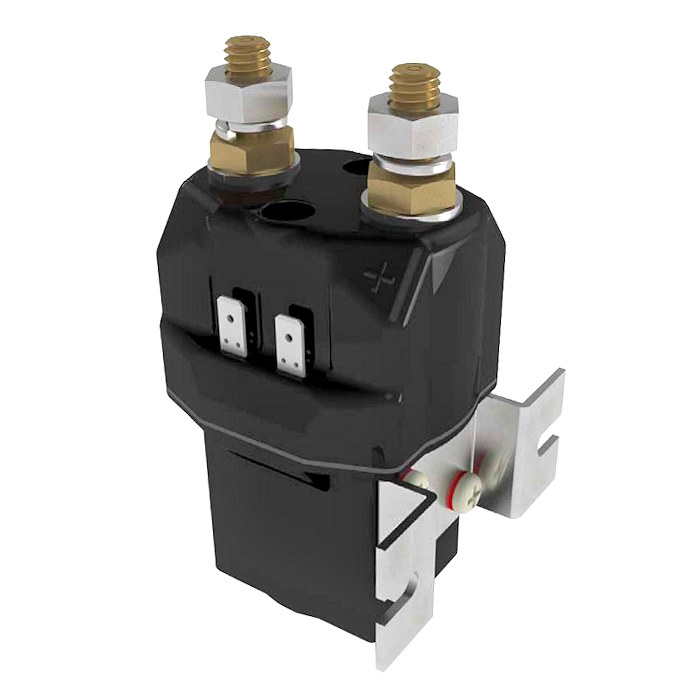

Albright SU285 single-acting 'Normally Closed' 30V continuously rated contactor.
- The SU285 series of contactors has been designed for direct current loads, particularly motors as used on larger electric vehicles such as industrial trucks, airport tractors, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- Repair contact kits are not available for this unit.
- The SU285P offers greater environmental protection (IP66) and is easy to install.
Dimensions
- Height including terminals and coil base cap: 133mm.
- Coil width: 48mm.
- Cap width: 67mm.
About The Normally Closed Continuous (CO.) SU285 Solenoids
Normally Closed continuous contactors by design are for an ‘Always On’ line function and break only when the coil is energised, they break slower than intermittent solenoids and are recommended for prolonged contact periods.
Specifications
| Device Type | SU280 SPST NC |
| Voltage | 30V D.C. |
| Coil Type | Continuous |
| Amps | 250 Amps |
| Coil Resistance (Ohms) | 66 |
| Pull-In Voltage (V) | 18.0 Maximum |
| Drop Out Voltage (V) | 7.5 Maximum |
| Coil Power Dissipation (W) | 13.64 |
Typical Voltage Drop Per Pole
across New Contacts at 250A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Mechanical M.T.B.F. | Greater than 3000000 |
| Weight | 755g |
| Application | Interrupted | Uninterrupted |
| Thermal Current Rating | 250A | 350A |
| Intermittent Current Rating: |
| 30% Duty | 455A | 640A |
| 40% Duty | 395A | 555A |
| 50% Duty | 355A | 495A |
| 60% Duty | 325A | 450A |
| 70% Duty | 300A | 420A |
