DC88-690 Albright 12V DC Motor Reversing Solenoid Contactor Continuous
Despatch: 6 to 8 Weeks
Part Number: DC88-690
Voltage: 12V DC
Coil type: Continuous
Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

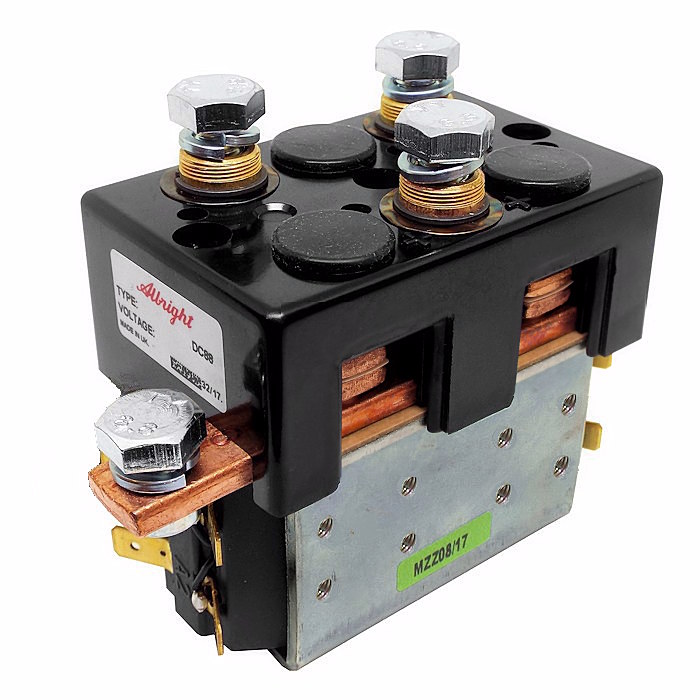

Albright 12 volt dc motor reversing solenoid contactor, continuous.
- The DC88-690 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
- They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
- The DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.
- 2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
- 2072-447 Pair of Albright DC88 Solenoid Mounting Brackets
About the DC88-690 Motor Reversing Solenoid
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

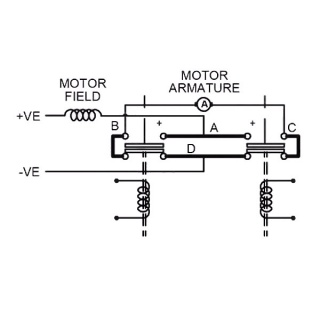

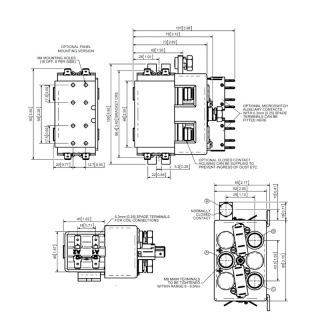

The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
|Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance). |
|Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance). |
Replacement Component Part Numbers
- 2070-360A: Top cover and stud contacts.
- 2070-14J: Moving contact.
- 2070-326: Long bar fixed contact.
|Device Type ||DC88 Monoblock SPDT NO |
|Voltage ||12V D.C. |
|Coil Type ||Continuous |
|Amps ||100A |
|Coil Resistance (Ohms) ||14 |
|Pull-In Voltage (V) ||8.0 Maximum |
|Drop Out Voltage (V) ||3.5 Maximum |
|Coil Power Dissipation (W) ||10.29 |
|Typical Pull-In Time ||20ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Normally Open: Less than 40mV |
Normally Closed: Less than 50mV
|Operating Ambient Temperature ||-40 to +60℃ |
|Guideline Weight ||1.04kg |
|Application ||Interrupted - Uninterrupted |
|Thermal Current Rating ||100A |
|Intermittent Current Rating: |
|30% Duty ||185A |
|40% Duty ||160A |
|50% Duty ||140A |
|60% Duty ||130A |
|70% Duty ||120A |
