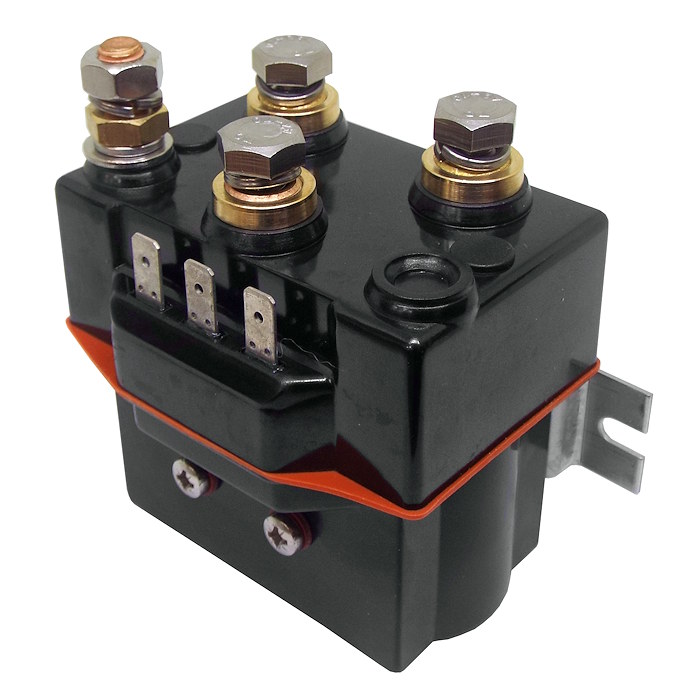

DC88-313P Albright 12V DC Motor-reversing Solenoid 100A IP66 - Continuous

£89.36  Excl. VAT
  (£107.23 Inc. VAT)
 Excl. VAT

Earn 89 Loyalty Points
2 in stock


Weight:  1 kg





Model:  DC88-313P
Bar Code:  DNA
Part Number:  DC88-313P
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright 12 Volts DC motor-reversing solenoid contactor, continuous.

  • The DC88-313P IP66 protected series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.

About The DC88-313P Motor Reversing Solenoid

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is an open circuit. The DC88P has double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Voltage 12V D.C.
Coil Type Continuous
Amps 100A
Coil Resistance (Ohms) 14.0
Pull-In Voltage (V) 8.0 Max.
Drop Out Voltage (V) 3.5 Max.
Coil Power Dissipation (W) 10.29
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 40mV
NC: < 50mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Guideline Weight 990g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
