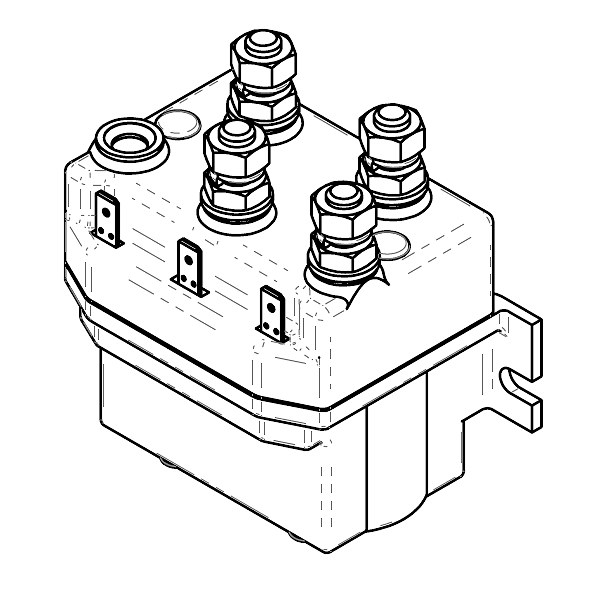

DC88-1066PL Albright 12V Reversing Solenoid 100A IP66 - Highly Intermittent

£92.16  Excl. VAT
  (£110.59 Inc. VAT)
 Excl. VAT

Earn 92 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.01 kg





Model:  DC88-1066PL
Bar Code:  DNA
Part Number:  DC88-1066PL
Brand:  Albright
Colour:  Black
Voltage:  12V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Highly Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright DC88-1066PL 12 Volts DC motor-reversing solenoid contactor with large tips, highly intermittent (HO).

  • The DC88-1066PL series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • DC88 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.
  • Environmental protection: The P-type build configuration offers greater environmentally protected switches to IP66.
  • Highly intermittent (HO).
  • Large contact tips fitted throughout.
  • Bottom cover with bracket, with slots for M6 screws.
  • Installation: mounting is via the supplied mounting bracket.
  • Repair contact kits are not available for this sealed unit.

About The DC88-1066PL Motor Reversing Solenoid

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously, the contact arrangement is an open circuit. The DC88P has double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity. Coil connections are by means of 6.3mm spades, and mounting is via the supplied bracket and can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Voltage 12V D.C.
Coil Type Highly Intermittent (HO)
Amps 100A
Contact Type Large tip.
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 7.5 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 20.57
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 40mV
NC: < 50mV
Operating Ambient Temperature -40 to +60℃
Protection IP66
Guideline Weight 990g
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
