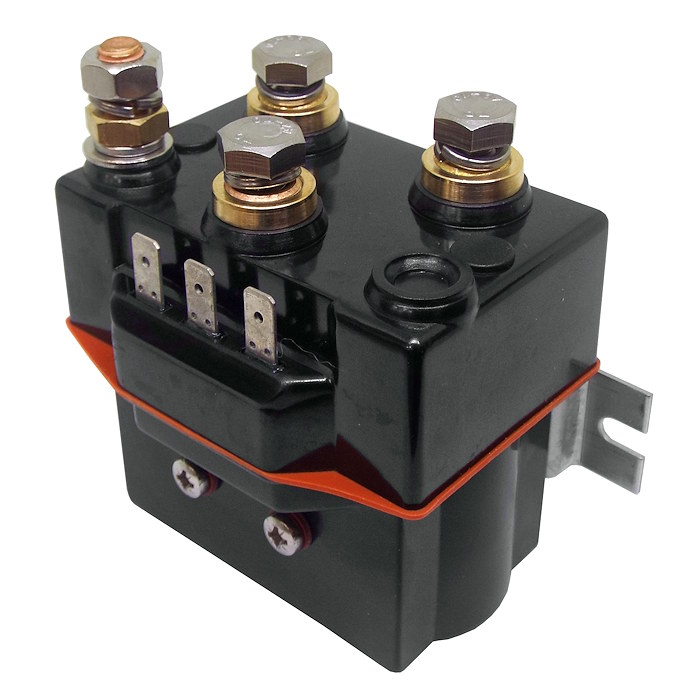

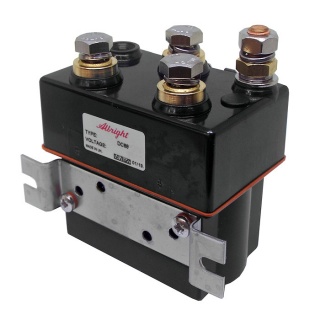

DC88-483P Albright 48V DC Motor Reversing Solenoid 100A IP66 - Intermittent

£76.21  Excl. VAT
  (£91.45 Inc. VAT)
 Excl. VAT

Earn 76 Loyalty Points
2 in stock


Weight:  1.01 kg


Model:  DC88-483P
Bar Code:  DNA
Part Number:  DC88-483P
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 48Vdc motor reversing solenoid contactor, intermittent.

  • The DC88-483P series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.,
  • They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.
  • Environmental protection: The P-type build configuration offers greater environmentally protected switches, to IP66.
  • Installation: mounting is via the supplied mounting bracket.
  • Repair contact kits are not available for this sealed unit.

About The DC88-483P Motor Reversing Solenoid

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

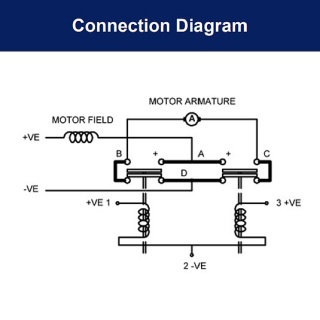

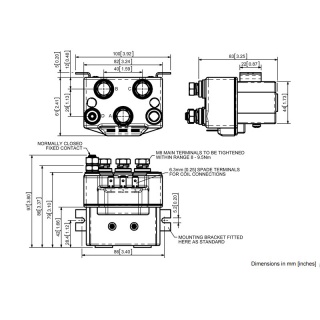

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC88P has double breaking main contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeDC88P Monoblock SPDT NO
Voltage48V D.C.
Coil TypeIntermittent
Amps100A
Coil Resistance (Ohms)120.0
Pull-In Voltage (V)29.0 Maximum
Drop Out Voltage (V)12.0 Maximum
Coil Power Dissipation (W)19.20
Typical Pull-In Time20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature-40 to +60℃
ProtectionIP66
Guideline Weight990g
ApplicationUninterrupted
Thermal Current Rating100A
Intermittent Current Rating:
30% Duty185A
40% Duty160A
50% Duty140A
60% Duty130A
70% Duty120A



Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.

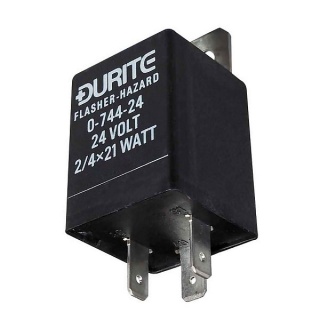

0-744-24 Durite 24V 2-4 x 21W Hazard Flasher Unit
0-744-24 Durite 24V 2-4 x 21W Hazard Flasher Unit

Durite 24Vdc 2-4 x 21W hazard flasher, negative earth only. Replaces Lucas: SFB166, SFB150, GM: 9962229 and Hella: 4DB 003 675 001.

Available
 Reference: 0-744-24 £27.00   £23.49

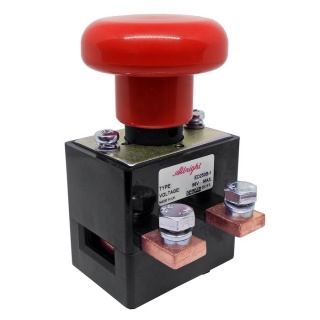

ED250B-1 Albright Heavy-duty Emergency Stop Switch 250A 96V Maximum
