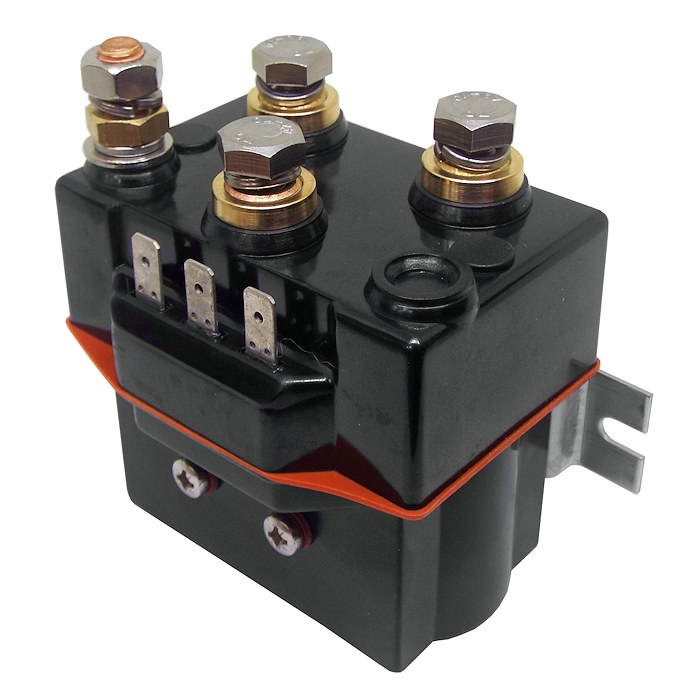

DC88-316P Albright 24V DC Motor-reversing Solenoid 100A IP66 - Continuous

£89.36  Excl. VAT
  (£107.23 Inc. VAT)
 Excl. VAT

Earn 89 Loyalty Points
No stock


Weight:  1 kg





Model:  DC88-316P
Bar Code:  DNA
Part Number:  DC88-316P
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright 24 Volts DC motor reversing solenoid contactor, continuous.

  • The DC88-316P IP66 protected series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

About The DC88-316P Motor Reversing Solenoid

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC88P has double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device TypeDC88P Monoblock SPDT NO
Voltage24V D.C.
Coil TypeContinuous
Amps100A
Coil Resistance (Ohms)52.0
Pull-In Voltage (V)16.0 Maximum
Drop Out Voltage (V)6.0 Maximum
Coil Power Dissipation (W)11.08
Typical Pull-In Time20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature-40 to +60℃
ProtectionIP66
Guideline Weight990g
ApplicationUninterrupted
Thermal Current Rating100A
Intermittent Current Rating:
30% Duty185A
40% Duty160A
50% Duty140A
60% Duty130A
70% Duty120A
