1.00mm² Blue & Brown 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-52

1.00mm² Blue & Brown 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-52
1.00mm² Blue & Brown 16.50A Thin Wall Twin-core Flat Cable | Re: 0-951-52
£18.71 Excl. VAT
RRP £21.92 Excl. VAT
(£22.45 Inc. VAT)
Initial Savings
£3.21
Earn 18 Loyalty Points

Available
Model
0-951-52F
Bar Code
5056119168778
Part Number
0-951-52F
Brand
Durite
Colour
Blue/Brown
Amperage
16.5A
Material
Copper/PVC
Ship Weight
1.10 kg


 Durite 16.5A Blue and Brown Thin Wall twin-core automotive cables in a flat moulded sheath for a vehicle wiring loom. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Blue/Brown.
  • 16.5 Amps twin-core automotive cables and vehicle wiring.
  • 32 copper strands at 0.20mm.
  • Outside measurement: 5mm x 3mm.
  • Manufactured to ISO6722:2006 Class B (thin wall).
  • Roll length: 30m.

About the 0-951-52 1.00mm² Blue and Brown Thin Wall PVC Electric Cables

 Arc Components Limited presents the 0-951-52, Durite's light-duty 16.5A Blue and Brown twin-core automotive Thin Wall cables, ideal for your vehicle's connection to electrical equipment with a low load requirement.

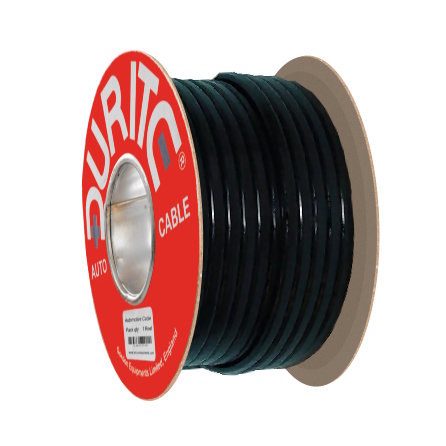

 This high-quality PVC flat sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready-use wiring racks. It is 1.0mm² (17 AWG) and features two 32 strands of 0.20mm separate copper wires bound together in a Thin Wall PVC sleeve and then moulded into a flat PVC sheath, with an outside measurement of 5.0mm x 3.0mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722:2006 Class B (thin wall), reduces the weight and volume of vehicle cable looms, and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps per cable.

 The Durite 0-951-52 twin cables are commonly used as conductor wires on low-amperage 12V-24V electrical equipment.

Specifications

Type Twin-core standard automotive wiring
Current Rating 16.50 Amps
Insulation Colour Blue and Brown
Wire 32/0.20mm copper
Cross-section 1.00mm² (17 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 18.5mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.

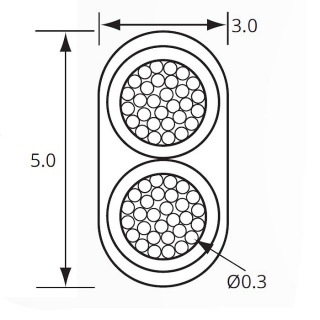

Overall Outside Measurement   5.00mm x 3.00mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals ISO6722:2006 Class B (thin wall)
Weight 1.88Kg




Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

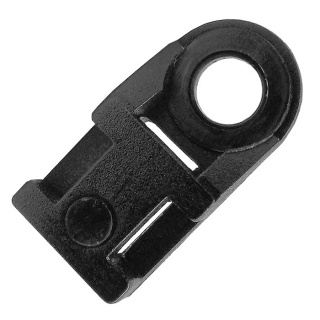

0-002-42 Pack of 25 Black Fixing Bases for Cable Ties up to 5mm Wide
