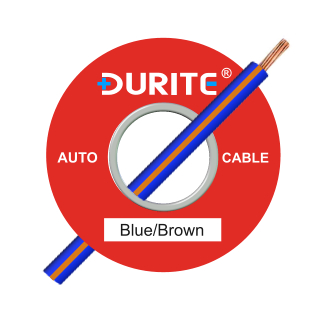

0-932-23 100m x 1.00mm˛ Blue-Brown 16.5A Auto Single-core Cable
Weight: 1.28 kg
Model: 0-932-23
Bar Code: 5056119131642
Part Number: 0-932-23
Brand: Durite
Colour Blue/Brown
Voltage 12V/24V/36V/48V DC
Amperage 16.5A
Material Copper/PVC
Durite 16.5A Blue with a Brown tracer automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 1mm² (17AWG) Blue/Brown (Blue cable, Brown stripe).
- 16.5 Amps single-core automotive cable and vehicle wiring.
- 32 copper strands at 0.20mm.
- Outside diameter: 2.1mm.
- Manufactured to ISO 6722-4.
- Roll length: 100m.
About the 0-932-23 1.00mm² Blue/Brown Thin Wall Electric Cable
Arc Components Limited presents the 0-932-23, Durite's light-duty 16.5A Blue with a Brown tracer line automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.
The Durite 0-932-23 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core thin wall cable |
| Current Rating | 16.5 Amps |
| Insulation Colour | Blue with a Brown tracer stripe |
| Wire | 32/0.20mm copper |
| Cross-section | 1.00mm² (17 AWG) |
| Voltage | 60 Volts DC Max. |
| Resistance | 18.5mΩ/m at 20℃ |
| Insulation | Hard grade PVC to BS6746 Type 5. |
| Overall Diameter | 2.1mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 100 Metres |
| Approvals | ISO6722/4 |
| Weight | 1.27Kg |
