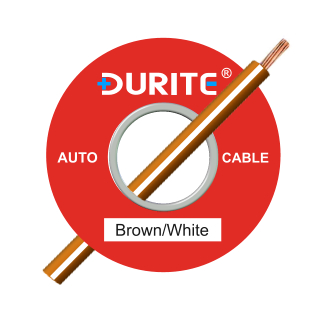

0-932-37 100m x 1.00mm² Brown-White 16.5A Auto Single-core Cable

£28.64  Excl. VAT
  (£34.37 Inc. VAT)
RRP:  £32.18  Excl. VAT
Initial Savings:  £3.54
Earn 28 Loyalty Points
Available


Weight:  1.28 kg





Model:  0-932-37
Bar Code:  5056119131727
Part Number:  0-932-37
Brand:  Durite
Colour:  Brown/White
Voltage:  12V/24V/36V/48V DC
Amperage:  16.5A
Material:  Copper/PVC


 Durite 16.5A Brown with a White tracer automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Brown/White (Brown cable, White stripe).
  • 16.5 Amps single-core automotive cable and vehicle wiring.
  • 32 copper strands at 0.20mm.
  • Outside diameter: 2.1mm.
  • Manufactured to ISO 6722-4.
  • Roll length: 100m.

About the 0-932-37 1.00mm² Brown/White Thin Wall Electric Cable

 Arc Components Limited presents the 0-932-37, Durite's light-duty 16.5A Brown with a White tracer line automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.

 The Durite 0-932-37 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 16.5 Amps
Insulation Colour Brown with a White tracer stripe
Wire 32/0.20mm copper
Cross-section 1.00mm² (17 AWG)
Voltage 60 Volts DC Max.
Resistance 18.5mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall Diameter   2.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722/4
Weight 1.27Kg
