0-932-35 100m x 1.00mm˛ Brown-Red 16.5A Auto Single Core Cable

£21.95  Excl. VAT
  (£26.34 Inc. VAT)
RRP:  £26.44
Savings before Cart:  £4.49
Earn 21 Loyalty Points
Available


Weight:  1.28kg


Model:  0-932-35
Bar Code:  5056119131710
Part Number:  0-932-35
Brand:  Durite
Colour:  Brown/Red
Amperage:  16.5A
Material:  Copper/PVC

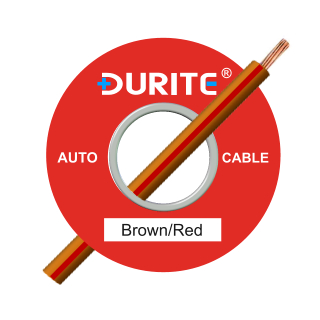

 Single core, 1mm² thin wall automotive brown with a red tracer PVC sheathed electric cable.

  • Length: 100m.
  • 1.00mm² brown-red (brown cable, red stripe).
  • 16.5A automotive single core cable.
  • 32 Strand 0.20mm.
  • Outside diameter: 2.1mm.
  • To ISO 06722-4.

About the 1mm² Brown and Red Thin Wall Electric Cable

 100 Metre rolls of light duty 16.5A brown with a red tracer line auto electrical thin wall cable, used for light current loads; thin wall configuration increases current load capabilities to a maximum of 16.5 amps continuous. With a reduced but harder PVC coating, thin wall cabling is modern by design and adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cable manufactured to ISO 6722-4 industry standards, reduces the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.

 Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 16.5 amp
Insulation colour Brown with a red tracer line
Wire 32/0.20mm copper
Cross section 1.00mm²
Voltage 60 volt DC maximum
Resistance 18.5mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall diameter   2.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 100 Metres
Approvals ISO6722/4
Weight 1.27Kg
