0-949-05 30m x 7.00mm˛ Red 50A Auto Single-core Cable

£59.93  Excl. VAT
  (£71.92 Inc. VAT)
RRP:  £67.34  Excl. VAT
Initial Savings:  £7.41
Earn 59 Loyalty Points
Available


Weight:  2.80 kg


Model:  0-949-05
Bar Code:  5056119133349
Part Number:  0-949-05
Brand:  Durite
Colour  Red
Voltage  12V/24V DC
Amperage  50A
Material  Copper/PVC


 Durite 50A Red standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 7.00mm² (9AWG) Red.
  • 50 Amps single-core automotive cable and vehicle wiring.
  • 97 copper strands at 0.30mm.
  • Outside diameter: 6.2mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-949-05 7.00mm² Red PVC Electric Cable

 Arc Components Limited presents the 0-949-05, Durite's medium to heavy-duty 50A Red automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.

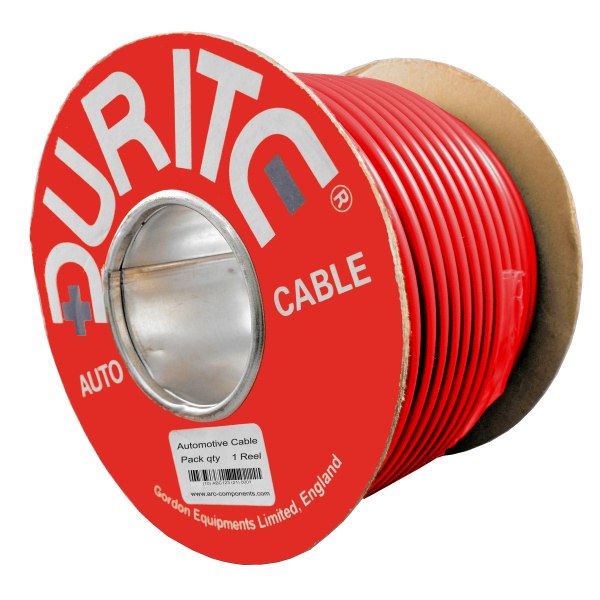

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 7mm² (9 AWG) and features 97 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 6.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 50 Amps.

 The Durite 0-949-05 is commonly used as a Positive (+) conductor wire on higher amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 50.0 Amps
Insulation Colour Red
Wire 97/0.30mm copper
Cross-section 7.00mm² (9 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 2.7mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   6.2mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals BS 6862-1:1971
Weight 2.8Kg
