0-949-01 30m x 7.00mm² Black 50A Auto Single-core Cable

0-949-01 30m x 7.00mm² Black 50A Auto Single-core Cable
0-949-01 30m x 7.00mm² Black 50A Auto Single-core Cable
£60.93 Excl. VAT
RRP £71.38 Excl. VAT
(£73.12 Inc. VAT)
Initial Savings
£10.45
Earn 60 Loyalty Points

Available
Model
0-949-01
Bar Code
5056119133325
Part Number
0-949-01
Brand
Durite
Colour
Black
Voltage
12V/24V DC
Amperage
50A
Material
Copper/PVC
Weight
2.80 kg

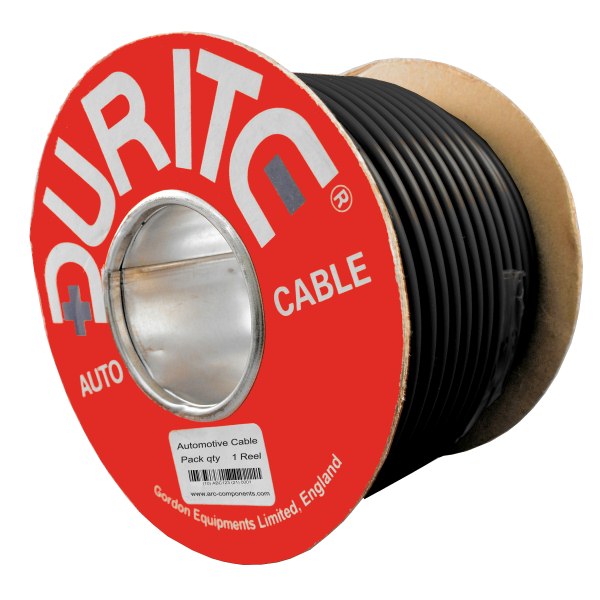

 Durite 50A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 7.00mm² (9AWG) Black.
  • 50 Amps single-core automotive cable and vehicle wiring.
  • 97 copper strands at 0.30mm.
  • Outside diameter: 6.2mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-949-01 7.00mm² Black PVC Electric Cable

 Arc Components Limited presents the 0-949-01, Durite's medium to heavy-duty 50A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 7mm² (9 AWG) and features 97 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 6.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 50 Amps.

 The Durite 0-949-01 is commonly used as a Negative (-) conductor wire on higher amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
50 Amps
Insulation Colour
Black
Wire
97/0.30mm copper
Cross-section
7.00mm² (9 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
2.79mΩ/m at 20 degrees C
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
6.2mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
30 Metres
Approvals
BS 6862-1:1971
Weight
2.8Kg
