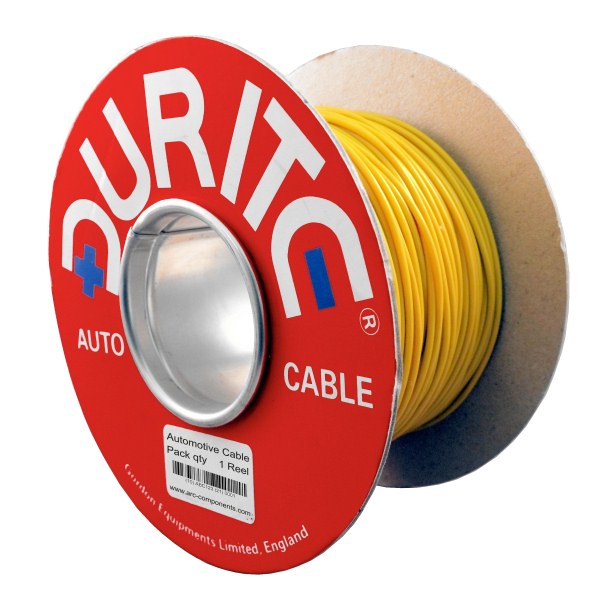

0-945-08 50m x 3.00mm² Yellow 27.5A Auto Single-core Cable

0-945-08 50m x 3.00mm² Yellow 27.5A Auto Single-core Cable
0-945-08 50m x 3.00mm² Yellow 27.5A Auto Single-core Cable
£46.13 Excl. VAT
RRP £54.04 Excl. VAT
Initial Savings
£7.91
(£55.36 Inc. VAT)
Earn 46 Loyalty Points

Available
Model
0-945-08
Bar Code
5056119133219
Part Number
0-945-08
Brand
Durite
Colour
Yellow
Voltage
12V/24V DC
Amperage
27.5A
Material
Copper/PVC
Weight
2.12 kg


 Durite 27.5A Yellow standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 3mm² (12AWG) Yellow.
  • 27.5 Amps single-core automotive cable and vehicle wiring.
  • 44 copper strands at 0.30mm.
  • Outside diameter: 4.2mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-945-08 3.00mm² Yellow PVC Electric Cable

 Arc Components Limited presents the 0-945-08, Durite's light to medium-duty 27.5A Yellow automotive cable, ideal for your vehicle's connection to electrical equipment with a low to medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 3.0mm² (12 AWG) and features 44 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 27.5 Amps.

 The Durite 0-945-08 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
27.5 Amps
Insulation Colour
Yellow
Wire
44/0.30mm copper copper
Cross-section
3.00mm² (12 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
6.0mΩ/m at 20 degrees C
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
4.2mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
50 Metres
Approvals
BS 6862-1:1971
Weight
2.12Kg
