0-945-01 50m x 3.00mm² Black 27.5A Auto Single-core Cable

£45.37  Excl. VAT
  (£54.44 Inc. VAT)
RRP:  £50.98  Excl. VAT
Initial Savings:  £5.61
Earn 45 Loyalty Points
Available


Weight:  2.12 kg





Model:  0-945-01
Bar Code:  5056119133172
Part Number:  0-945-01
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  27.5A
Material  Copper/PVC


 Durite 27.5A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 3mm² (12AWG) Black.
  • 27.5 Amps single-core automotive cable and vehicle wiring.
  • 44 copper strands at 0.30mm.
  • Outside diameter: 4.2mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-945-01 3.00mm² Black PVC Electric Cable

 Arc Components Limited presents the 0-945-01, Durite's light to medium-duty 27.5A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a low to medium load requirement.

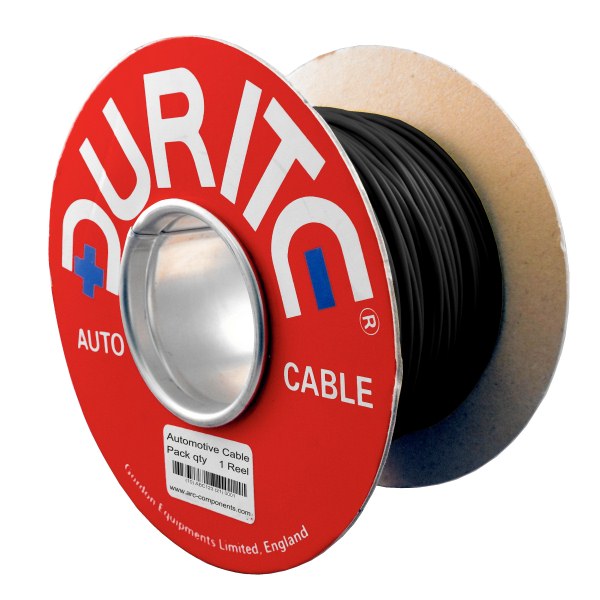

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 3.0mm² (12 AWG) and features 44 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 27.5 Amps.

 The Durite 0-945-01 is commonly used as a Negative (-) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 27.5 Amps
Insulation Colour Black
Wire 44/0.30mm copper
Cross-section 3.00mm² (12 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 6.0mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   4.2mm
Temperature Minus 30 to +70℃
Length of Cable 50 Metres
Approvals BS 6862-1:1971
Weight 2.12Kg
