0-943-01 50m x 2.00mm² Black 17.5A Auto Single-core Cable
£28.73 Excl. VAT (£34.48 Inc. VAT)
£32.28 Excl. VAT
Initial Savings: £3.55
Earn 28 Loyalty Points
Weight: 1.40 kg
Bar Code: 5056119132977
Part Number: 0-943-01
Voltage 12V/24V DC
Durite 17.5A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 2mm² (14AWG) Black.
- 17.5 Amps single-core automotive cable and vehicle wiring.
- 28 copper strands at 0.30mm.
- Outside diameter: 3.4mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.

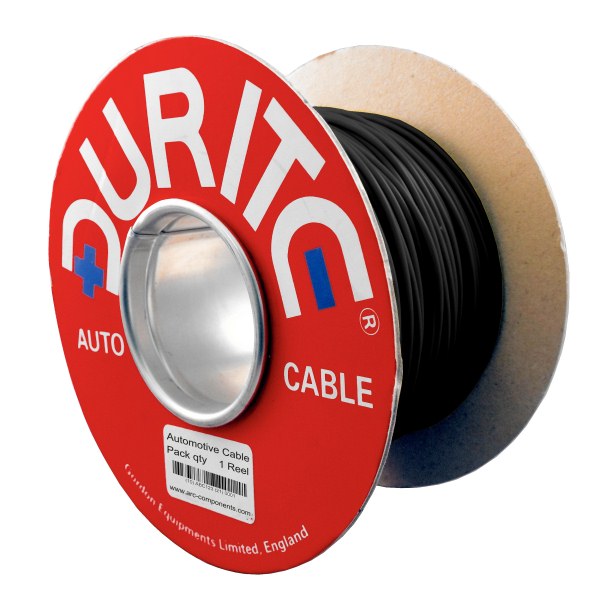

About the 0-943-01 2.00mm² Black PVC Electric Cable
Arc Components Limited presents the 0-943-01, Durite's light-duty 17.5A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.
The Durite 0-943-01 is commonly used as a Negative (-) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core standard automotive wiring |
|Current Rating ||17.5 Amps |
|Insulation Colour ||Black |
|Wire ||28/0.30mm copper |
|Cross-section ||2.00mm² (14 AWG) |
|Voltage ||For 12 and 24 Volts DC systems (100 Volts DC Max.) |
|Resistance ||9.4mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||3.4mm |
|Temperature ||Minus 30 to +70℃ |
|Length of Cable ||50 Metres |
|Approvals ||BS 6862-1:1971 |
|Weight ||1.4Kg |
