0-943-04 50m x 2.00mm˛ Green 17.5A Auto Single-core Cable
Weight: 1.40 kg
Model: 0-943-04
Bar Code: 5056119133004
Part Number: 0-943-04
Brand: Durite
Colour Green
Voltage 12V/24V DC
Amperage 17.5A
Material Copper/PVC
Durite 17.5A Green standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 2mm² (14AWG) Green.
- 17.5 Amps single-core automotive cable and vehicle wiring.

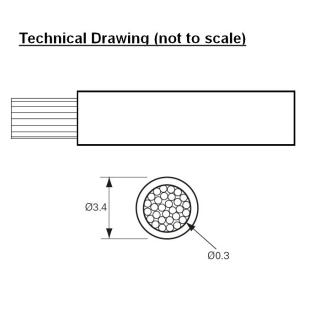

- 28 copper strands at 0.30mm.
- Outside diameter: 3.4mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-943-04 2.00mm² Green PVC Electric Cable
Arc Components Limited presents the 0-943-04, Durite's light-duty 17.5A Green automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.
The Durite 0-943-04 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core standard automotive wiring |
| Current Rating | 17.5 Amps |
| Insulation Colour | Green |
| Wire | 28/0.30mm copper |
| Cross-section | 2.00mm² (14 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 9.4mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 3.4mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 50 Metres |
| Approvals | BS 6862-1:1971 |
| Weight | 1.4Kg |
