0-943-07 50m x 2.00mm² White 17.5A Auto Single-core Cable

£28.73  Excl. VAT
  (£34.48 Inc. VAT)
RRP:  £32.28  Excl. VAT
Initial Savings:  £3.55
Earn 28 Loyalty Points
Available


Weight:  1.40 kg





Model:  0-943-07
Bar Code:  5056119133035
Part Number:  0-943-07
Brand:  Durite
Colour  White
Voltage  12V/24V DC
Amperage  17.5A
Material  Copper/PVC

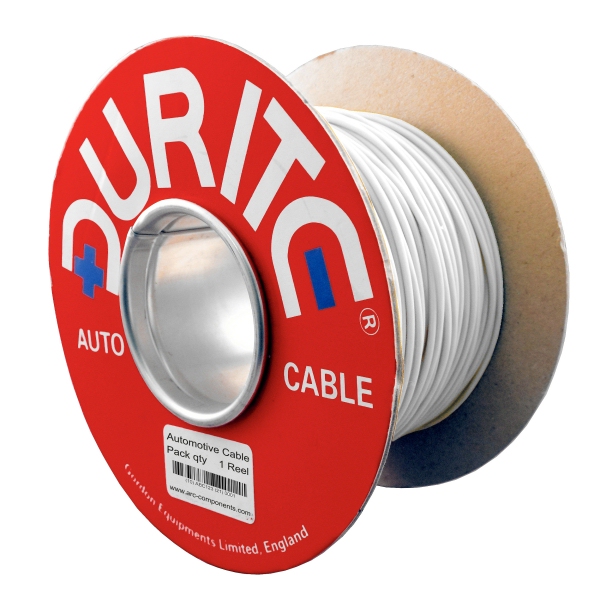

 Durite 17.5A White standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 2mm² (14AWG) White.
  • 17.5 Amps single-core automotive cable and vehicle wiring.
  • 28 copper strands at 0.30mm.
  • Outside diameter: 3.4mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-943-07 2.00mm² White PVC Electric Cable

 Arc Components Limited presents the 0-943-07, Durite's light-duty 17.5A White automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.

 The Durite 0-943-07 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 17.5 Amps
Insulation Colour White
Wire 28/0.30mm copper
Cross-section 2.00mm² (14 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 9.4mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   3.4mm
Temperature Minus 30 to +70℃
Length of Cable 50 Metres
Approvals BS 6862-1:1971
Weight 1.4Kg
