0-943-06 50m x 2.00mm² Purple 17.5A Auto Single-core Cable

£28.73 Excl. VAT

RRP ~~£32.28~~ Excl. VAT

Initial Savings

£3.55

(£34.48 Inc. VAT)

Earn 28 Loyalty Points

Available

Model

0-943-06

Bar Code

5056119133028

Part Number

0-943-06

Brand

Durite

Colour

Purple

Voltage

12V/24V DC

Amperage

17.5A

Material

Copper/PVC

Weight

1.40 kg

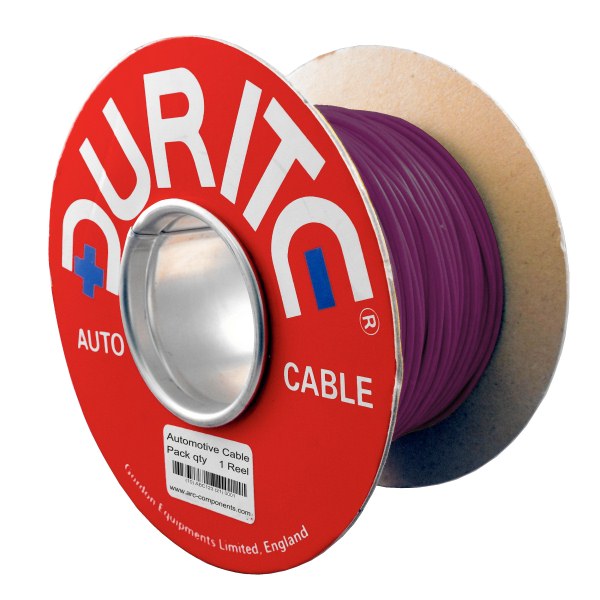

Durite 17.5A Purple standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

2mm² (14AWG) Purple.
17.5 Amps single-core automotive cable and vehicle wiring.

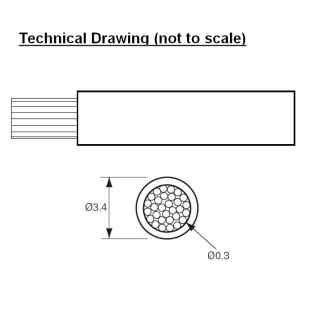

28 copper strands at 0.30mm.
Outside diameter: 3.4mm.
Manufactured to BS6862-1:1971.
Roll length: 50m.

About the 0-943-06 2.00mm² Purple PVC Electric Cable

Arc Components Limited presents the 0-943-06, Durite's light-duty 17.5A Purple automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.

The Durite 0-943-06 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type	Single-core standard automotive wiring
Current Rating	17.5 Amps
Insulation Colour	Purple
Wire	28/0.30mm copper
Cross-section	2.00mm² (14 AWG)
Voltage	For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance	9.4mΩ/m at 20℃
Insulation	Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter	3.4mm
Temperature	Minus 30 to +70℃
Length of Cable	50 Metres
Approvals	BS 6862-1:1971
Weight	1.4Kg
