Durite 21.75A Red standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 2.5mm² (13AWG) Red.
- 21.75 Amps single-core automotive cable and vehicle wiring.
- 35 copper strands at 0.30mm.
- Outside diameter: 3.8mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-944-05 2.50mm² Red PVC Electric Cable
Arc Components Limited presents the 0-944-05, Durite's light to medium-duty 21.75A Red automotive cable, ideal for your vehicle's connection to electrical equipment with a low to medium load requirement.

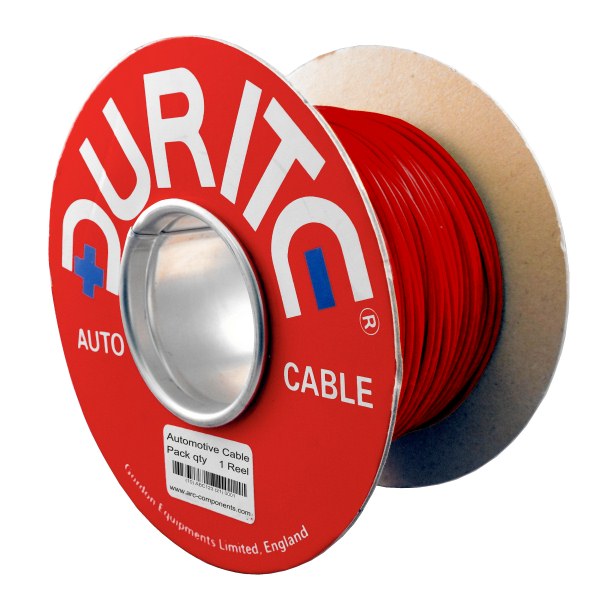

This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.5mm² (13 AWG) and features 35 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.8mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21.75 Amps.
The Durite 0-944-05 is commonly used as a Positive (+) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core standard automotive wiring |
| Current Rating | 21.75 Amps |
| Insulation Colour | Red |
| Wire | 35/0.30mm copper |
| Cross-section | 2.50mm² (13 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 7.5mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |

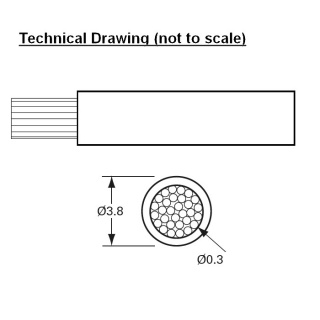

| Overall Diameter | 3.8mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 50 Metres |
| Approvals | BS 6862-1:1971 |
| Weight | 1.69Kg |
