0-944-01 50m x 2.50mm² Black 21.75A Auto Single-core Cable

0-944-01 50m x 2.50mm² Black 21.75A Auto Single-core Cable
0-944-01 50m x 2.50mm² Black 21.75A Auto Single-core Cable
£36.26 Excl. VAT
RRP £42.48 Excl. VAT
Initial Savings
£6.22
(£43.51 Inc. VAT)
Earn 36 Loyalty Points

Available
Model
0-944-01
Bar Code
5056119133141
Part Number
0-944-01
Brand
Durite
Colour
Black
Voltage
12V/24V DC
Amperage
21.75A
Material
Copper/PVC
Weight
1.69 kg

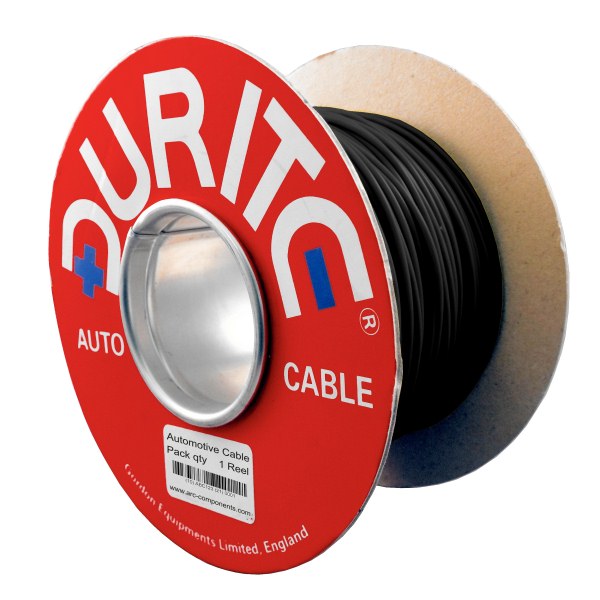

 Durite 21.75A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 2.5mm² (13AWG) Black.
  • 21.75 Amps single-core automotive cable and vehicle wiring.
  • 35 copper strands at 0.30mm.
  • Outside diameter: 3.8mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-944-01 2.50mm² Black PVC Electric Cable

 Arc Components Limited presents the 0-944-01, Durite's light to medium-duty 21.75A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a low to medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.5mm² (13 AWG) and features 35 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.8mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21.75 Amps.

 The Durite 0-944-01 is commonly used as a Negative (-) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
21.75 Amps
Insulation Colour
Black
Wire
35/0.30mm copper
Cross-section
2.50mm² (13 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
7.5mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
3.8mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
50 Metres
Approvals
BS 6862-1:1971
Weight
1.69Kg
