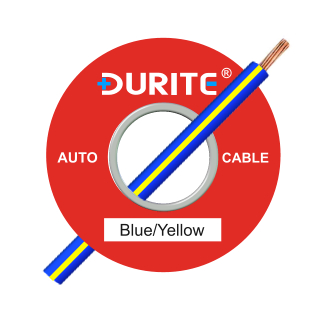

0-942-28 50m x 1.00mm² Blue-Yellow 8.75A Auto Single-core Cable
£14.86 Excl. VAT (£17.83 Inc. VAT)
£16.70 Excl. VAT
Initial Savings: £1.84
Earn 14 Loyalty Points
Weight: 780 g
Bar Code: 5056119132694
Part Number: 0-942-28
Voltage: 12V/24V DC
Durite 8.75A Blue with a Yellow tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 1mm² (17AWG) Blue/Yellow (Blue cable, Yellow stripe).
- 8.75 Amps single-core automotive cable and vehicle wiring.
- 14 copper strands at 0.30mm.
- Outside diameter: 2.7mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-942-28 1.00mm² Blue/Yellow PVC Electric Cable
Arc Components Limited presents the 0-942-28, Durite's light-duty 8.75A Blue with a Yellow tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps.
The Durite 0-942-28 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core standard automotive wiring |
|Current Rating ||8.75 Amps |
|Insulation Colour ||Blue with a Yellow tracer stripe |
|Wire ||14/0.30mm copper |
|Cross-section ||1.00mm² (17 AWG) |
|Voltage ||For 12 and 24 Volts DC systems (100 Volts DC Max.) |
|Resistance ||18.9mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||2.7mm |
|Temperature ||Minus 30 to +70℃ |
|Length of Cable ||50 Metres |
|Approvals ||BS 6862-1:1971 |
|Weight ||0.82Kg |
