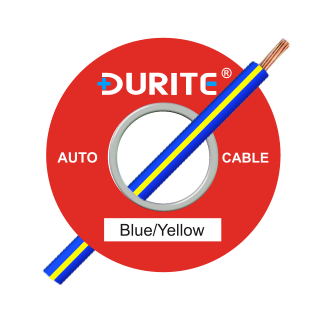

0-941-28 50m x 0.65mm² Blue-Yellow 5.75A Auto Single-core Electric Cable

£11.06 Excl. VAT

RRP ~~£12.96~~ Excl. VAT

(£13.27 Inc. VAT)

Initial Savings

£1.90

Earn 11 Loyalty Points

Available

Model

0-941-28

Bar Code

5056119132472

Part Number

0-941-28

Brand

Durite

Colour

Blue/Yellow

Voltage

12V/24V DC

Amperage

5.75A

Material

Copper/PVC

Ship Weight

640 g

Durite 5.75A Blue with a Yellow tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

.65mm² (19AWG) Blue/Yellow (Blue cable, Yellow stripe).
5.75 Amps single-core automotive cable and vehicle wiring.
9 copper strands at 0.30mm.
Outside diameter: 2.5mm.
Manufactured to BS6862-1:1971.
Roll length: 50m.

About the 0-941-28 0.65mm² Blue/Yellow PVC Electric Cable

Arc Components Limited presents the 0-941-28, Durite's light-duty 5.75A Blue with a Yellow tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.65mm² (19 AWG) and features 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps.

The Durite 0-941-28 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type

Single-core standard automotive wiring

Current Rating

5.75 Amps

Insulation Colour

Blue with a Yellow tracer stripe

Wire

9/0.30mm copper

Cross-section

0.65mm² (19 AWG)

Voltage

For 12 and 24 Volts DC systems (100 Volts DC Max.)

Resistance

29.4mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

2.5mm

Temperature

Minus 30 to +70 degrees C

Length of Cable

50 Metres

Approvals

BS 6862-1:1971

Weight

0.64Kg
