0-942-23 50m x 1.00mm² Blue-Brown 8.75A Auto Single-core Cable

£15.11 Excl. VAT
RRP £17.70 Excl. VAT
(£18.13 Inc. VAT)
Initial Savings
£2.59
Earn 15 Loyalty Points

Available
Model
0-942-23
Bar Code
5056119132656
Part Number
0-942-23
Brand
Durite
Colour
Blue/Brown
Voltage
12V/24V DC
Amperage
8.75A
Material
Copper/PVC
Ship Weight
820 g

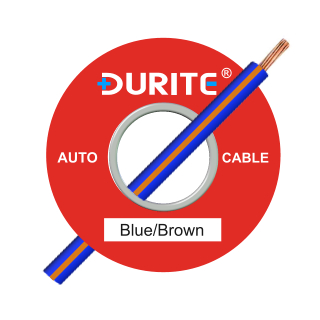

 Durite 8.75A Blue with a Brown tracer standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Blue/Brown (Blue cable, Brown stripe).
  • 8.75 Amps single-core automotive cable and vehicle wiring.
  • 14 copper strands at 0.30mm.
  • Outside diameter: 2.7mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-942-23 1.00mm² Blue/Brown PVC Electric Cable

 Arc Components Limited presents the 0-942-23, Durite's light-duty 8.75A Blue with a Brown tracer line automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps.

 The Durite 0-942-23 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
8.75 Amps
Insulation Colour
Blue with a Brown tracer stripe
Wire
14/0.30mm copper
Cross-section
1.00mm² (17 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
18.9mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
2.7mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
50 Metres
Approvals
BS 6862-1:1971
Weight
0.82Kg
