0-932-18 100m x 1.00mm˛ Black-Yellow 16.5A Auto Single Core Cable
Bar Code: 5056119131628
Part Number: 0-932-18

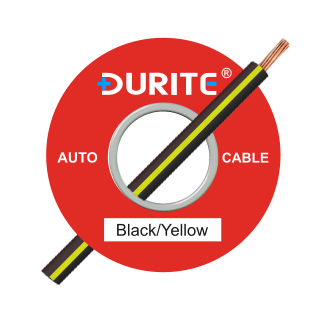

Single core, 1mm² thin wall automotive black with a yellow tracer PVC sheathed electric cable.
- Length: 100m.
- 1.00mm² black-yellow (black cable, yellow stripe).
- 16.5A automotive single core cable.
- 32 Strand 0.20mm.
- Outside diameter: 2.1mm.
- To ISO 06722-4.
About the 1mm² Black and Yellow Thin Wall Electric Cable
100 Metre rolls of light duty 16.5A black with a yellow tracer line auto electrical thin wall cable, used for light current loads; thin wall configuration increases current load capabilities to a maximum of 16.5 amps continuous. With a reduced but harder PVC coating, thin wall cabling is modern by design and adopted for wiring looms and trees with modern vehicle manufacturers. Durite thin wall electrical cable manufactured to ISO 6722-4 industry standards, reduces the weight and volume of vehicles cable looms and has good overall resistance to petrol, diesel and lubricating oils.
Used as a conductor wire on low amperage electrical equipment and wiring looms.
|Type ||Single core thin wall cable |
|Current Rating ||16.5 amp |
|Insulation colour ||Black with a yellow tracer line |
|Wire ||32/0.20mm copper |
|Cross section ||1.00mm² |
|Voltage ||60 volt DC maximum |
|Resistance ||18.5mΩ/m at 20℃ |
|Insulation ||Hard grade PVC to BS6746 Type 5. |
|Overall diameter ||2.1mm |
|Temperature ||Minus 40 to +105℃ |
|Length of cable ||100 Metres |
|Approvals ||ISO6722/4 |
|Weight ||1.27Kg |
