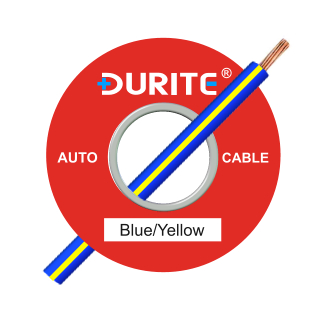

0-932-28 100m x 1.00mm² Blue-Yellow 16.5A Auto Single-core Cable

0-932-28 100m x 1.00mm² Blue-Yellow 16.5A Auto Single-core Cable
0-932-28 100m x 1.00mm² Blue-Yellow 16.5A Auto Single-core Cable
£29.13 Excl. VAT
RRP £34.12 Excl. VAT
(£34.96 Inc. VAT)
Initial Savings
£4.99
Earn 29 Loyalty Points

Available
Model
0-932-28
Bar Code
5056119131680
Part Number
0-932-28
Brand
Durite
Colour
Blue/Yellow
Voltage
12V/24V/36V/48V DC
Amperage
16.5A
Material
Copper/PVC
Ship Weight
1.28 kg


 Durite 16.5A Blue with a Yellow tracer automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 1mm² (17AWG) Blue/Yellow (Blue cable, Yellow stripe).
  • 16.5 Amps single-core automotive cable and vehicle wiring.
  • 32 copper strands at 0.20mm.
  • Outside diameter: 2.1mm.
  • Manufactured to ISO 6722-4.
  • Roll length: 100m.

About the 0-932-28 1.00mm² Blue/Yellow Thin Wall Electric Cable

 Arc Components Limited presents the 0-932-28, Durite light-duty 16.5A Blue with a Yellow tracer line automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.

 The Durite 0-932-28 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
16.5 Amps
Insulation Colour
Blue with a Yellow tracer stripe
Wire
32/0.20mm copper
Cross-section
1.00mm² (17AWG)
Voltage
60 Volts DC Max.
Resistance
18.5mΩ/m at 20℃
Insulation
Hard grade PVC to BS6746 Type 5.
Overall Diameter
2.1mm
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Length of Cable
100 Metres
Approvals
ISO6722/4
Weight
1.27Kg
