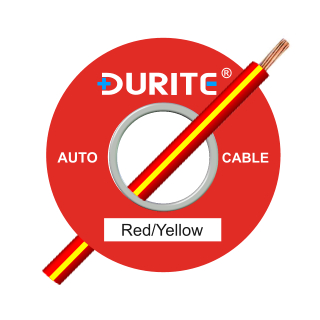

0-932-58 100m x 1.00mm² Red-Yellow 16.5A Auto Single-core Cable

£29.13 Excl. VAT

RRP ~~£34.12~~ Excl. VAT

(£34.96 Inc. VAT)

Initial Savings

£4.99

Earn 29 Loyalty Points

Available

Model

0-932-58

Bar Code

5056119131857

Part Number

0-932-58

Brand

Durite

Colour

Red/Yellow

Voltage

12V/24V/36V/48V DC

Amperage

16.5A

Material

Copper/PVC

Ship Weight

1.28 kg

Durite 16.5A Red with a Yellow tracer automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

1mm² (17AWG) Red/Yellow (Red cable, Yellow stripe).
16.5 Amps single-core automotive cable and vehicle wiring.
32 copper strands at 0.20mm.
Outside diameter: 2.1mm.
Manufactured to ISO 6722-4.
Roll length: 100m.

About the 0-932-58 1.00mm² Red/Yellow Thin Wall Electric Cable

Arc Components Limited presents the 0-932-58, Durite's light-duty 16.5A Red with a Yellow tracer line automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 32 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 16.5 Amps.

The Durite 0-932-58 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type

Single-core thin wall cable

Current Rating

16.5 Amps

Insulation Colour

Red with a Yellow tracer stripe

Wire

32/0.20mm copper

Cross-section

1.00mm² (17 AWG)

Voltage

60 Volts DC Max.

Resistance

18.5mΩ/m at 20℃

Insulation

Hard grade PVC to BS6746 Type 5.

Overall Diameter

2.1mm

Temperature

Minus 40 to +105℃ (120℃ intermittent)

Length of Cable

100 Metres

Approvals

ISO6722/4

Weight

1.27Kg
