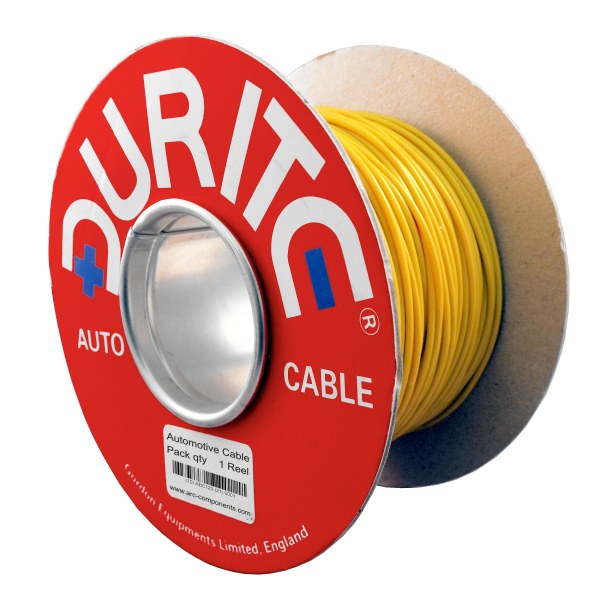

0-930-08 100m x 1.50mm˛ Yellow 21A Single Core Thin Wall Auto Electric Cable

£31.67  Excl. VAT
  (£38.00 Inc. VAT)
RRP:  £37.26
Savings before Cart:  £5.59
Earn 31 Loyalty Points
Available


Weight:  1.62kg


Model:  0-930-08
Bar Code:  5056119131338
Part Number:  0-930-08
Brand:  Durite
Colour:  Yellow
Amperage:  21A
Material:  Copper/PVC


 Single core PVC thin wall 21A automotive cable.

  • Reel length: 100m.
  • 1.50mm² yellow.
  • 21A single core electric cable.
  • 21 strand 0.30mm.
  • Outside diameter: 2.4mm.
  • To ISO 6722-1:2011.

About the 1.5mm² Yellow Thin Wall Electric Cable

 100 Metre rolls of thin wall 21A yellow cable. Used for light current loads, the 1.5mm² is ideal for vehicle wiring requiring a maximum load of 21 amps continuous. Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 21 amp
Insulation colour Yellow
Wire 21/0.30mm copper
Cross section 1.5mm²
Voltage 60 volt DC maximum
Resistance 12.7mΩ/m at 20℃
Insulation Hard grade PVC offering good resistance to abrasion and cut through.
Overall diameter   2.4mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 100 Metres
Approvals ISO6722-1:2011
Weight 1.65Kg
