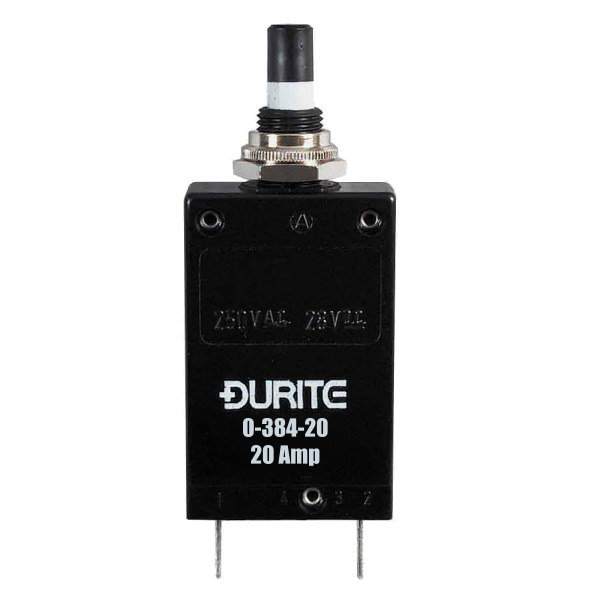

0-384-20 Durite Pin Base or Panel Mount Circuit Breaker 20A

£32.75  Excl. VAT
  (£39.30 Inc. VAT)
RRP:  £36.80  Excl. VAT
Initial Savings:  £4.05
Earn 32 Loyalty Points
Available


Weight:  40 g


Model:  0-384-20
Bar Code:  5056119111637
Part Number:  0-384-20
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  20A
Material  Thermoplastic/Brass/Copper/Steel


 Durite 20 Amps pin base or panel-mounted circuit breaker.

  • Rated at 20A for 12-24Vdc systems.
  • Thermal bimetallic with manual reset and manual trip.
  • For panel hole: 9.6mm diameter.
  • Mountable on 6.3mm blade bases part numbers: 0-384-98 or 0-384-99.
  • Can use splashproof cover: 0-384-97.
  • Pack Quantity: 1 piece.
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-384-99 Base for Blade Mounted Circuit Breakers Screw Terminal Connection
0-384-99 Base for Blade Mounted Circuit Breakers Screw Terminal Connection

Moulded plastic base, for 2 circuit breakers. Can be joined together to form a bank, accepts 6.3mm blades with cable screw terminals.

Available
 Reference: 0-384-99 £20.30   £18.07

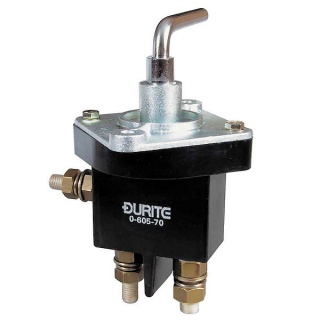

0-605-70 On-Off Battery Change Over Switch with Fixed Handle
0-605-70 On-Off Battery Change Over Switch with Fixed Handle

Durite battery changeover switch with fixed handle. 2 positions on-off for switching from one battery to another. Rated 250 Amps at 24Vdc.

Available
 Reference: 0-605-70 £117.16   £104.27

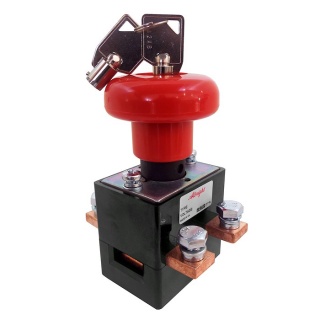

ED252L-1 Albright Heavy Duty Emergency Stop Switch With Key 250A 96V Maximum
