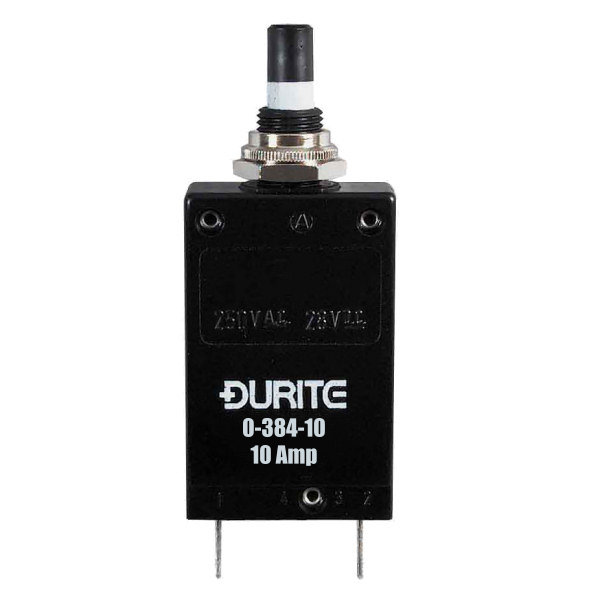

0-384-10 Durite Pin Base or Panel Mount Circuit Breaker 10A

£32.75  Excl. VAT
  (£39.30 Inc. VAT)
RRP:  £36.80  Excl. VAT
Initial Savings:  £4.05
Earn 32 Loyalty Points
Available


Weight:  40 g





Model:  0-384-10
Bar Code:  5056119111613
Part Number:  0-384-10
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  10A
Material  Thermoplastic/Brass/Copper/Steel


 Durite 10 Amps pin base or panel-mounted circuit breaker.

  • Rated at 10A for 12-24Vdc systems.
  • Thermal bimetallic with manual reset and manual trip.
  • For panel hole: 9.6mm diameter.
  • Mountable on 6.3mm blade bases part numbers: 0-384-98 or 0-384-99.
  • Can use splashproof cover: 0-384-97.
  • Pack Quantity: 1 piece.
