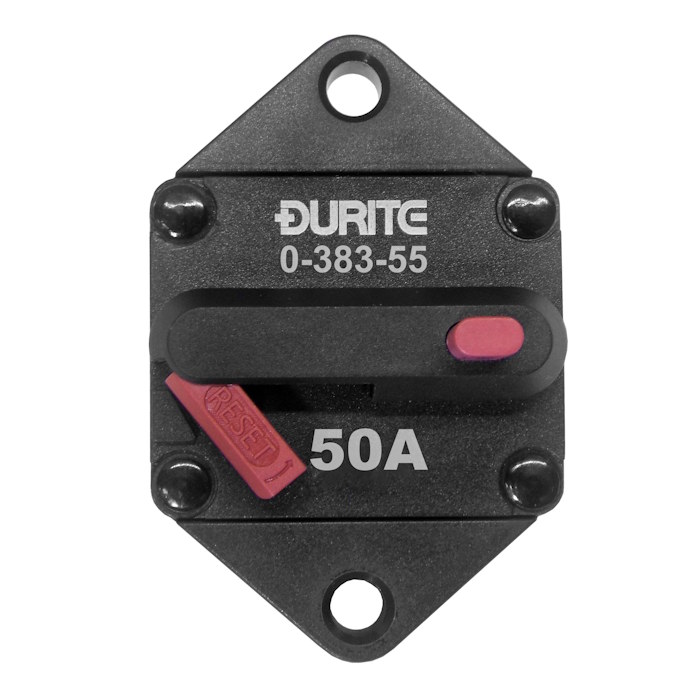

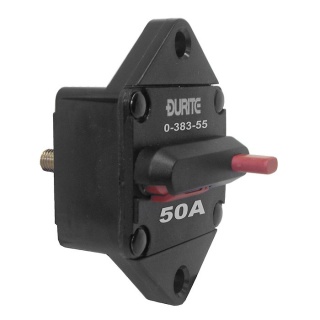

0-383-55 Durite 12V-24V DC 50A Panel Mounted Circuit Breaker

£33.50  Excl. VAT
  (£40.20 Inc. VAT)
RRP:  £37.64  Excl. VAT
Initial Savings:  £4.14
Earn 33 Loyalty Points
Available


Weight:  100 g





Model:  0-383-55
Bar Code:  5056119151237
Part Number:  0-383-55
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  50A
Material  Thermoplastic/Brass/Copper/Steel


 Durite 50 Amps panel mounted circuit breakers for 12V-24Vdc auxiliary and accessory circuits found on; cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

  • 50A manual reset protection for ignition circuits.
  • Thermoplastic housing.
  • Panel mounted version.
  • It is rated for a 12-24Vdc application.
  • Quarter-inch terminal bolts
  • Pack Quantity: 1 piece.

Related Products

  • 0-383-99 Steel 90° angled mounting bracket.
  • 0-383-98 Mounting pad.

Dimensions

  • Height: 74.5mm
  • Width: 49mm
  • Front panel depth (including button): Approximately 27mm
  • Rear panel depth (including bolts): Approximately 30mm

Specifications

Type Single-pole thermal device
Amps 50A
Voltage 12Vdc to 24Vdc
Colour Black
Body Material Polybutylene Terephthalate (PBT 4830)
Operating Temperature -32°C to 82°C (-25°F to 180°F)
Storage Temperature -34°C to 149°C (-30°F to 300°F)
Weight 100g







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

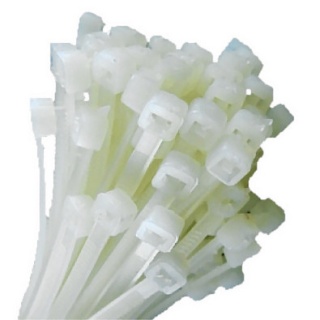

0-002-33 Pack of 100 Durite White Cable Ties 200mm x 2.5mm
0-002-33 Pack of 100 Durite White Cable Ties 200mm x 2.5mm

Pack of approximately 100 White cable ties size 200mm long by 2.5mm wide.


Available
 Reference: 0-002-33 £2.54   £2.26
0-002-41 Pack of 25 Adhesive Backed Black Cable Tie Wrap Bases
0-002-41 Pack of 25 Adhesive Backed Black Cable Tie Wrap Bases

Pack of 25, Black adhesive backed bases for cable ties up to 5mm wide, base size 25mm x 25mm.


Available
 Reference: 0-002-41 £5.56   £4.95
0-002-42 Pack of 25 Black Fixing Bases for Cable Ties up to 5mm Wide
0-002-42 Pack of 25 Black Fixing Bases for Cable Ties up to 5mm Wide

Black fixing bases for cable ties up to 5mm wide, base size: 19mm long by 9.5mm wide.


Available
 Reference: 0-002-42 £2.34   £2.08


Related Products
0-381-55 Durite 12V-24V Panel Mount Circuit breaker 5A
0-381-55 Durite 12V-24V Panel Mount Circuit breaker 5A

Durite 12V-24Vdc 5 Amps thermal circuit breakers. Compact push-to-reset single-pole circuit breaker.


Available
 Reference: 0-381-55 £5.78   £5.14
0-381-60 Durite 12V-24V Panel Mount Circuit breaker 10A
0-381-60 Durite 12V-24V Panel Mount Circuit breaker 10A

Durite 12V-24Vdc 10 Amps thermal circuit breakers. Compact push-to-reset single-pole circuit breaker.


Available
 Reference: 0-381-60 £5.78   £5.14

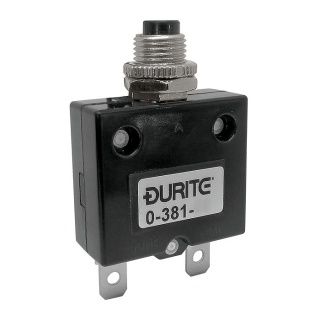

0-381-65 Durite 12V-24V Panel Mount Circuit breaker 15A
