0-330-07 50m Roll Nylon Heavy-duty Convoluted Un-split Tubing 7.5NW

£49.07  Excl. VAT
  (£58.88 Inc. VAT)
RRP:  £55.14  Excl. VAT
Initial Savings:  £6.07
Earn 49 Loyalty Points
Available


Weight:  920 g





Model:  0-330-07
Bar Code:  5056119108217
Part Number:  0-330-07
Brand:  Durite
Size:  7.5NW
Colour:  Black
Material:  Nylon

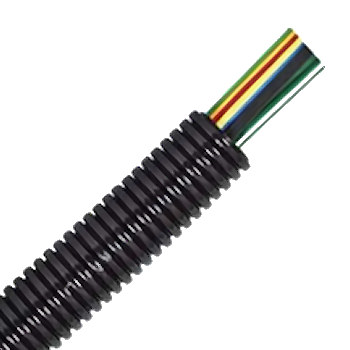

 50m roll, black nylon heavy duty auto electrical convoluted un-split tubing.

  • Sealed to protect cables and looms against external elements.
  • NW: 7.5.
  • Inside diameter: 6.7mm.
  • Outside diameter: 10.0mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: nylon.

About The NW 7.5 Unsplit Tubing

 NW7.5 (nominal width 7.5mm) tubes used to create electric cable runs throughout a vehicle and held in place with nylon chassis clamps.

 T-pieces, Y-pieces and 90° joints can be used with the automotive conduit to give a clean and tidy (along with protected) navigation around vehicle parts and components, the tube can be terminated with cable entry glands or an interface housings to use with Superseal and Junior Power Timer terminal connectors.

Specifications

Type Convoluted un-split tubing
Application Protection of cable
Nominal width (NW) 7.5mm
Inside diameter (ID) 6.7mm
Outside diameter (OD) 10.0mm
Material Polyamide 6 (nylon)
Temperature range Minus 40 to +120℃
Flame retardant Yes
Halogen free Yes
Permanent vibration DIN 53442
UV resistance DIN EN ISO 8580
