0-330-13 50m Roll Nylon Heavy-duty Convoluted Un-split Tubing 13NW

0-330-13 50m Roll Nylon Heavy-duty Convoluted Un-split Tubing 13NW
0-330-13 50m Roll Nylon Heavy-duty Convoluted Un-split Tubing 13NW
£76.84 Excl. VAT
RRP £90.02 Excl. VAT
Initial Savings
£13.18
(£92.21 Inc. VAT)
Earn 76 Loyalty Points

Available
Model
0-330-13
Bar Code
5056119108231
Part Number
0-330-13
Brand
Durite
Size
13NW
Colour
Black
Material
Nylon
Weight
1.58 kg

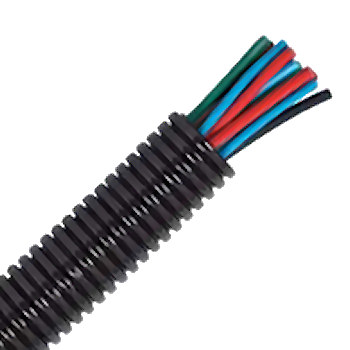

 50m roll, black nylon heavy duty auto electrical convoluted un-split tubing.

  • Sealed to protect cables and looms against external elements.
  • NW: 13.
  • Inside diameter: 12.7mm.
  • Outside diameter: 15.8mm.
  • Pack quantity: 50m roll.
  • Colour: black.
  • Material: nylon.

About The NW 13 Unsplit Tubing

 NW13 (nominal width 13mm) tubes used to create electric cable runs throughout a vehicle and held in place with nylon chassis clamps.

 T-pieces, Y-pieces and 90° joints can be used with the automotive conduit to give a clean and tidy (along with protected) navigation around vehicle parts and components.

Specifications

Type
Convoluted un-split tubing
Application
Protection of cable
Nominal width (NW)
13.0mm
Inside diameter (ID)
12.7mm
Outside diameter (OD)
15.8mm
Material
Polyamide 6 (nylon)
Temperature range
Minus 40 to +120 degrees C
Flame retardant
Yes
Halogen free
Yes
Permanent vibration
DIN 53442
UV resistance
DIN EN ISO 8580
