0-328-13 50m Roll Polypropylene Deep Section Convoluted Split Tubing 13NW

£56.19  Excl. VAT
  (£67.43 Inc. VAT)
RRP:  £63.14  Excl. VAT
Initial Savings:  £6.95
Earn 56 Loyalty Points
Available


Weight:  1.36 kg





Model:  0-328-13
Bar Code:  5056119108118
Part Number:  0-328-13
Brand:  Durite
Size:  13NW
Colour:  Black
Material:  Polypropylene

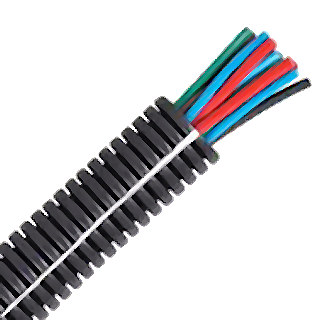

 50m roll, black polypropylene deep section convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 13 (Nominal width 13mm).
  • Inside diameter: 11.1mm, outside diameter: 15.7mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: polypropylene.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 13.0mm
Inside diameter (ID) 11.1mm
Outside diameter (OD) 15.7mm
Material Polypropylene
Temperature range Minus 40 to +125℃
Flame retardant Yes
Self extinguishing Yes (In accordance with FMVSS 302)
Cold impact resistance High
UV resistance DIN EN ISO 8580
