0-328-22 50m Roll Polypropylene Deep Section Convoluted Split Tubing 22NW

£84.46  Excl. VAT
  (£101.35 Inc. VAT)
RRP:  £94.90  Excl. VAT
Initial Savings:  £10.44
Earn 84 Loyalty Points
Available


Weight:  2.35 kg


Model:  0-328-22
Bar Code:  5056119108132
Part Number:  0-328-22
Brand:  Durite
Size  22NW
Colour  Black
Material  Polypropylene

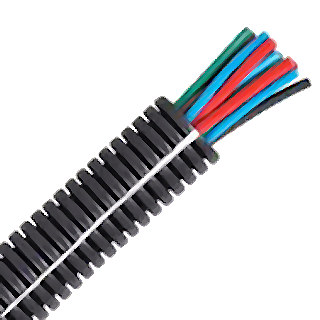

 50m roll, black polypropylene deep section convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 22 (nominal width 22mm).

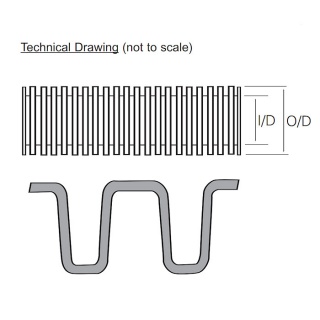

  • Inside diameter: 19.1mm, outside diameter: 25.7mm.
  • Pack quantity: 50 metre roll.
  • Colour: black.
  • Material: polypropylene.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 22.0mm
Inside diameter (ID) 19.1mm
Outside diameter (OD) 25.7mm
Material Polypropylene
Temperature range Minus 40 to +125℃
Flame retardant Yes
Self extinguishing Yes (In accordance with FMVSS 302)
Cold impact resistance High
UV resistance DIN EN ISO 8580
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-328-13 50m Roll Polypropylene Deep Section Convoluted Split Tubing 13NW
0-328-13 50m Roll Polypropylene Deep Section Convoluted Split Tubing 13NW

50 Metre of Black polypropylene deep section convoluted split tubing. NW13, ID: 11.1mm and OD: 15.7mm.

Available
 Reference: 0-328-13 £63.14   £56.19


Related Products
0-328-04 100m Roll Polypropylene Deep Section Convoluted Split Tubing 4.5NW
0-328-04 100m Roll Polypropylene Deep Section Convoluted Split Tubing 4.5NW

100 Metre roll of Black polypropylene deep section convoluted split tubing. NW4.5, ID: 5.0mm and OD: 7.1mm.

Available
 Reference: 0-328-04 £63.58   £56.59
0-328-07 50m Roll Polypropylene Deep Section Convoluted Split Tubing 7.5NW
0-328-07 50m Roll Polypropylene Deep Section Convoluted Split Tubing 7.5NW

50 Metre roll of Black polypropylene deep section convoluted split tubing. NW7.5, ID: 6.9mm and OD: 9.9mm.

Available
 Reference: 0-328-07 £38.14   £33.94
0-328-10 50m Roll Polypropylene Deep Section Convoluted Split Tubing 10NW
0-328-10 50m Roll Polypropylene Deep Section Convoluted Split Tubing 10NW

50 Metre roll of Black polypropylene deep section convoluted split tubing. NW10, ID: 8.5mm and OD: 12.9mm.

Available
 Reference: 0-328-10 £46.48   £41.37

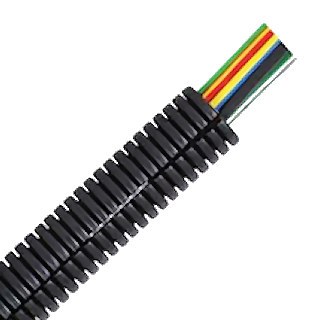

0-328-11 50m Roll Polypropylene Deep Section Convoluted Split Tubing 11NW
