0-328-10 50m Roll Polypropylene Deep Section Convoluted Split Tubing 10NW

£41.37  Excl. VAT
  (£49.64 Inc. VAT)
RRP:  £46.48  Excl. VAT
Initial Savings:  £5.11
Earn 41 Loyalty Points
Available


Weight:  1.18 kg





Model:  0-328-10
Bar Code:  5056119108101
Part Number:  0-328-10
Brand:  Durite
Size:  10NW
Colour:  Black
Material:  Polypropylene

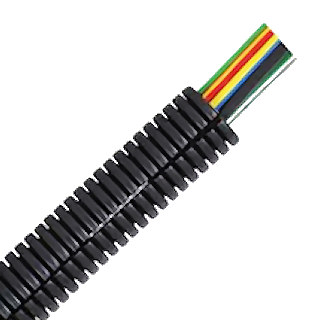

 Durite 50m roll of Black polypropylene deep section convoluted split tubing.

  • Protects vehicle's electrical cables, wiring and looms against external elements.
  • NW: 10 (nominal width 10mm).
  • Inside diameter: 8.5mm, outside diameter: 12.9mm.
  • Colour: Black.
  • Material: Polypropylene.
  • Pack Quantity: 50 Metre roll.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal Width (NW) 10.0mm
Inside Diameter (ID) 8.5mm
Outside Diameter (OD) 12.9mm
Material Polypropylene
Temperature Range Minus 40 to +125℃
Flame Retardant Yes
Self-extinguishing Yes (In accordance with FMVSS 302)
Cold Impact Resistance High
UV Resistance DIN EN ISO 8580
