0-328-04 100m Roll Polypropylene Deep Section Convoluted Split Tubing 4.5NW

£50.67  Excl. VAT
  (£60.80 Inc. VAT)
RRP:  £58.24
Savings before Cart:  £7.57
Earn 50 Loyalty Points
Available


Weight:  450 g


Model:  0-328-04
Bar Code:  5056119144031
Part Number:  0-328-04
Brand:  Durite
Size:  4.5NW
Colour:  Black
Material:  Polypropylene

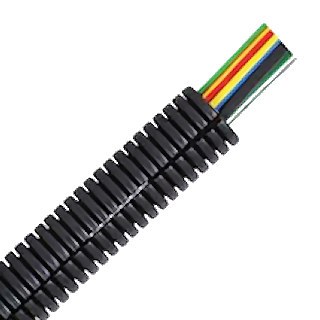

 100m roll of black polypropylene deep section convoluted split tubing.

  • Protects electric cables and looms against external elements.
  • NW: 4.5 (nominal width 4.5mm).

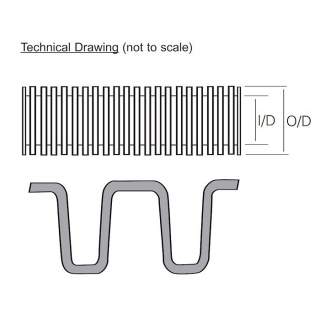

  • Inside diameter: 5.0mm, outside diameter: 7.1mm.
  • Pack quantity: 100 metre roll.
  • Colour: black.
  • Material: polypropylene.

Specifications

Type Convoluted split tubing
Application Protection of cable
Nominal width (NW) 4.5mm
Inside diameter (ID) 5.0mm
Outside diameter (OD) 7.1mm
Material Polypropylene
Temperature range Minus 40 to +125℃
Flame retardant Yes
Self extinguishing Yes (In accordance with FMVSS 302)
Cold impact resistance High
UV resistance DIN EN ISO 8580
